Same model may have multiple batches, images only for reference.

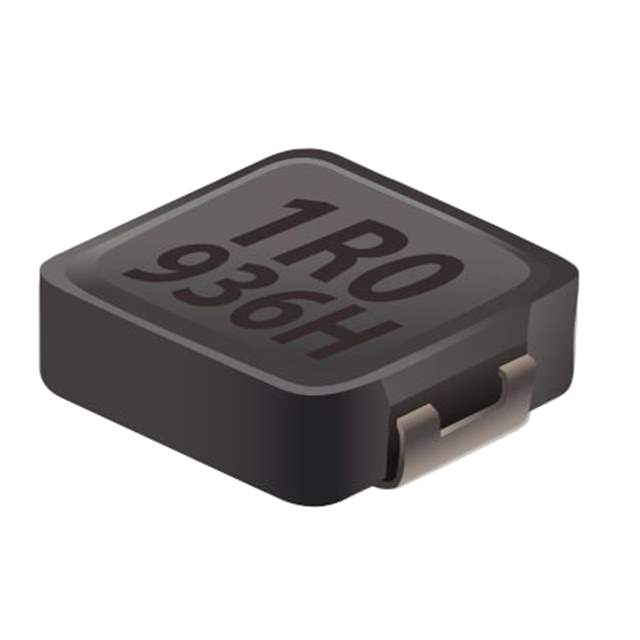

SRP5030C-1R5M Real Image
Same model may have multiple batches, images only for reference.

SRP5030C-1R5M

Part No SRP5030C-1R5M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP5030C-1R5M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP5030C
Package Tape & Reel
Material - Core Metal
Inductance 1.5 µH
Tolerance ±20%
Current Rating (Amps) 8 A
Current - Saturation (Isat) 10.5A
Shielding Shielded
DC Resistance (DCR) 19mOhm Max
Q @ Freq 20 @ 100kHz
Frequency - Self Resonant 35MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.224" L x 0.205" W (5.70mm x 5.20mm)
Height - Seated (Max) 0.118" (3.00mm)
Other Names 118-SRP5030C-1R5MTR,118-SRP5030C-1R5MDKR,118-SRP5030C-1R5MCT
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1273880-SRP5030C-1R5M
Ultra Librarian 3D Model Ultra Librarian SRP5030C-1R5M CAD Model

Description

The SRP5030C-1R5M inductor is a shielded fixed inductor that features a metal core and a nonstandard package/case.

  • Inductance: 1.5 µH
  • Tolerance: ±20%
  • DC Resistance: 19mOhm max
  • Q: 20 @ 100kHz
  • Self-Resonant Frequency: 35MHz
  • Temperature Range: -40°C to 125°C
  • Current Rating: 8A
  • Height: 0.118” (3.00mm)
  • Dimension: 0.224” L x 0.205” W (5.70mm x 5.20mm)
  • Mounting: SMD (SMT) technology
