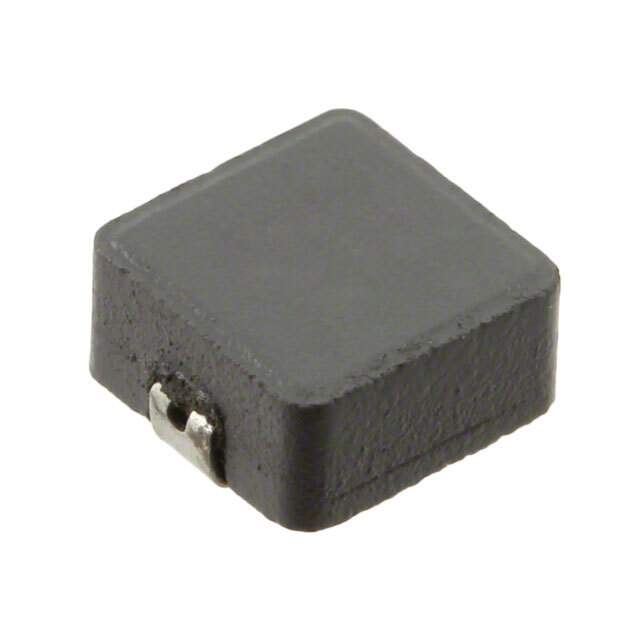

SRP5030T-1R5M Real Image
Same model may have multiple batches, images only for reference.

SRP5030T-1R5M

Part No SRP5030T-1R5M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP5030T-1R5M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP5030T
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Iron Powder
Inductance 1.5 µH
Tolerance ±20%
Current Rating (Amps) 6 A
Current - Saturation (Isat) 10A
Shielding Shielded
DC Resistance (DCR) 25mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.224" L x 0.205" W (5.70mm x 5.20mm)
Height - Seated (Max) 0.118" (3.00mm)
Base Product Number SRP5030T
Other Names SRP5030T-1R5MCT,SRP5030T-1R5MTR,SRP5030T-1R5MDKR
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273860-SRP5030T-1R5M
Ultra Librarian 3D Model Ultra Librarian SRP5030T-1R5M CAD Model

Description

The SRP5030T-1R5M is a shielded, drum core inductor with a wirewound construction.

  • Inductance: 1.5 microhenries
  • Tolerance: ±20%
  • DC Resistance: 25 milliohms maximum
  • Current Rating: 6 amps
  • Saturation Current: 10 amps
  • Package: Tape and reel
  • Dimensions: 0.224 inches in length and 0.205 inches in width
  • Height: 0.118 inches
  • Core Material: Iron powder
  • Operating Temperature: -40°C to 125°C
