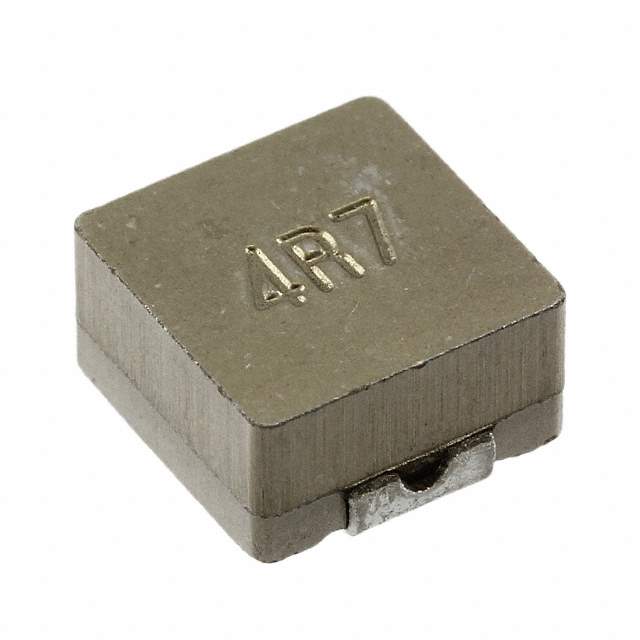

SRP6540-150M Real Image
Same model may have multiple batches, images only for reference.

SRP6540-150M

Part No SRP6540-150M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP6540-150M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP6540
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Iron Powder
Inductance 15 µH
Tolerance ±20%
Current Rating (Amps) 2.9 A
Current - Saturation (Isat) 2.9A
Shielding Shielded
DC Resistance (DCR) 121mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.283" L x 0.256" W (7.20mm x 6.50mm)
Height - Seated (Max) 0.157" (4.00mm)
Base Product Number SRP6540
Other Names SRP6540-150MDKR,SRP6540-150MTR,SRP6540-150MCT
Standard Package 1,200
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273820-SRP6540-150M
Ultra Librarian 3D Model Ultra Librarian SRP6540-150M CAD Model

Description

This SRP6540 drum core, wirewound inductor is a fixed inductor that comes in a tape and reel package.

  • Shielded: Yes
  • Inductance: 15 µH
  • Tolerance: ±20%
  • Core Material: Iron powder
  • DC Resistance (DCR): 121mOhm Max
  • Height (Seated): 0.157" (4.00mm)
  • Dimension: 0.283" L x 0.256" W (7.20mm x 6.50mm)
  • Operating Temperature: -55°C ~ 125°C
  • Current Rating: 2.9 A
  • Mounting Applications: SMD (SMT)
  • Series: SRP6540
  • Standard Package: 1,200
  • Inductance Frequency Test: 100 kHz
