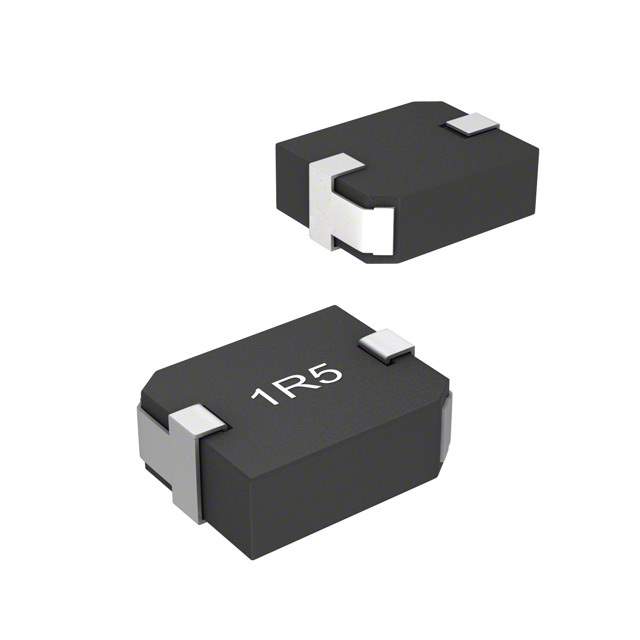

Same model may have multiple batches, images only for reference.

SRP7030-R10M

Name: SRP7030-R10M
Brand: Bourns Inc.
SKU: 1273792
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	SRP7030-R10M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Datasheet	SRP7030-R10M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRP7030
Package	Tape & Reel (TR),Cut Tape (CT)
Type	Drum Core, Wirewound
Material - Core	Iron
Inductance	100 nH
Tolerance	±20%
Current Rating (Amps)	32.5 A
Current - Saturation (Isat)	42A
Shielding	Shielded
DC Resistance (DCR)	1.7mOhm Max
Temperature Range - Operating	-55°C ~ 150°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max)	0.126" (3.20mm)
Base Product Number	SRP7030
Other Names	SRP7030-R10MTR,SRP7030-R10MCT,-SRP7030-R10MCT,-SRP7030-R10M,SRP7030-R10M,-SRP7030-R10MTR,-SRP7030-R10M,SRP7030R10M
Standard Package	1,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1273792-SRP7030-R10M
Ultra Librarian 3D Model	Ultra Librarian SRP7030-R10M CAD Model

Alternative Products

Description

The Bourns Inc. SRP7030-R10M is a fixed inductor designed for use in circuits with a 100 nH inductance and a tolerance of ±20%.

Type: Drum core, wirewound, shielded
Mounting: SMD (SMT)
DC Resistance (DCR): 1.7mOhm Max
Current Rating: 32.5A
Operating Temperature: -55°C to 150°C
Dimensions: 0.307" L x 0.276" W (7.80mm x 7.00mm)
ECCN: EAR99
REACH: Unaffected
HTSUS: 8504.50.4000
