Same model may have multiple batches, images only for reference.

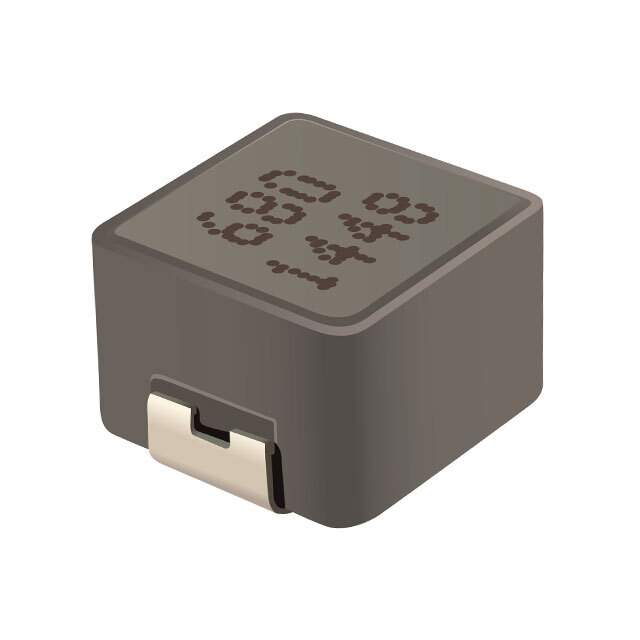

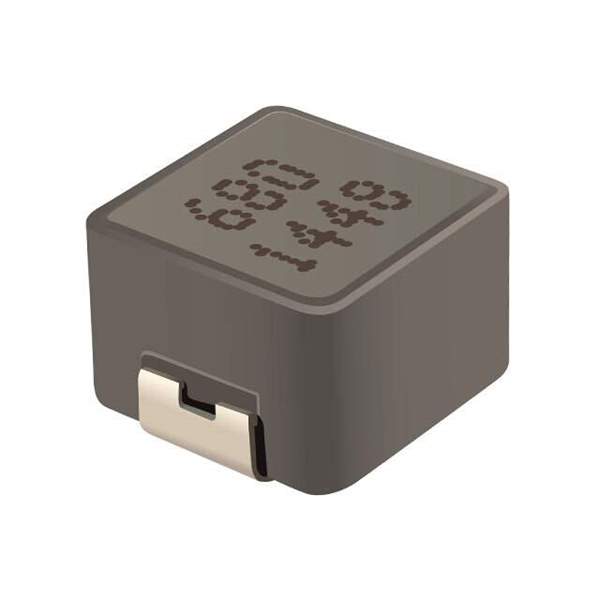

SRP7050TA-R40M Real Image
Same model may have multiple batches, images only for reference.

SRP7050TA-R40M

Part No SRP7050TA-R40M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP7050TA-R40M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP7050TA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 400 nH
Tolerance ±20%
Current Rating (Amps) 23 A
Current - Saturation (Isat) 31A
Shielding Shielded
DC Resistance (DCR) 3.7mOhm Max
Q @ Freq 10 @ 100kHz
Frequency - Self Resonant 100MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.287" L x 0.260" W (7.30mm x 6.60mm)
Height - Seated (Max) 0.197" (5.00mm)
Base Product Number SRP7050TA
Other Names SRP7050TA-R40MCT,SRP7050TA-R40MTR,SRP7050TA-R40MDKR
Standard Package 800
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273772-SRP7050TA-R40M
Ultra Librarian 3D Model Ultra Librarian SRP7050TA-R40M CAD Model

Description

The SRP7050TA-R40M is a drum core, wirewound inductor from Bourns Inc.

  • Package: Shielded, tape and reel
  • Mounting: SMD (SMT)
  • Inductance: 400nH
  • Tolerance: ±20%
  • Current Rating: 23A
  • Height: 0.197 inches
  • Dimension: 0.287 inches x 0.260 inches
  • Temperature Range: -40°C to 150°C
  • DC Resistance (DCR): 3.7mOhm max
  • Q at Frequency: 10 @ 100kHz
  • Self-Resonant Frequency: 100MHz
