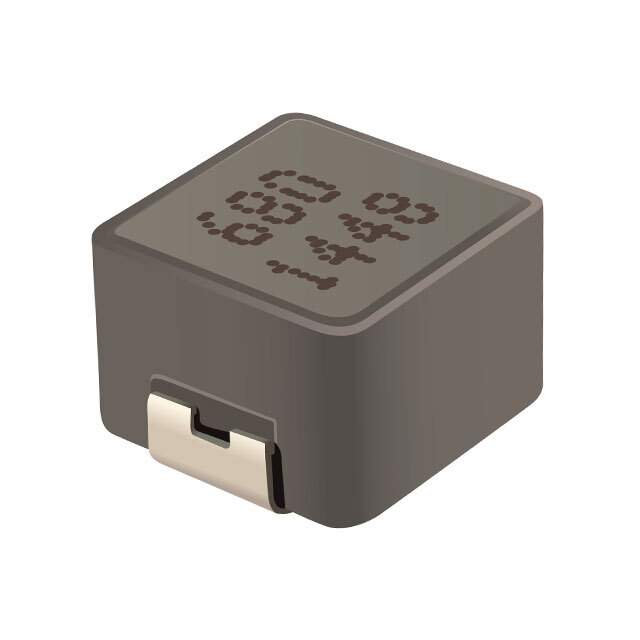

Same model may have multiple batches, images only for reference.

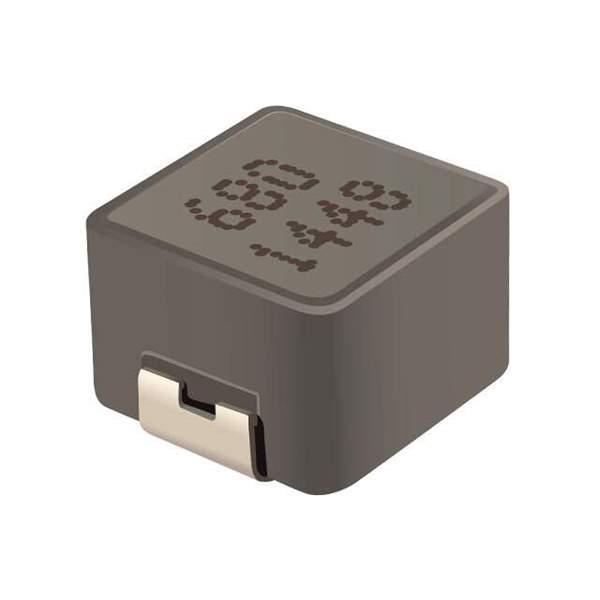

SRP7050TA-R47M Real Image
Same model may have multiple batches, images only for reference.

SRP7050TA-R47M

Part No SRP7050TA-R47M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP7050TA-R47M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP7050TA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 470 nH
Tolerance ±20%
Current Rating (Amps) 22 A
Current - Saturation (Isat) 30A
Shielding Shielded
DC Resistance (DCR) 3.9mOhm Max
Q @ Freq 10 @ 100kHz
Frequency - Self Resonant 95MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.287" L x 0.260" W (7.30mm x 6.60mm)
Height - Seated (Max) 0.197" (5.00mm)
Base Product Number SRP7050TA
Other Names SRP7050TA-R47MTR,,SRP7050TA-R47MTR,118-SRP7050TA-R47MCT,SRP7050TA-R47MCT,118-SRP7050TA-R47MTR,SRP7050TA-R47MDKR,SRP7050TA-R47MCT,SRP7050TA-R47MDKR,118-SRP7050TA-R47MDKR
Standard Package 800
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273771-SRP7050TA-R47M
Ultra Librarian 3D Model Ultra Librarian SRP7050TA-R47M CAD Model

Description

The Bourns Inc. SRP7050TA-R47M is a shielded, drum core, wirewound inductor that comes in a tape and reel package.

  • Inductance: 470 nH
  • Tolerance: ±20%
  • Core Material: Carbonyl powder
  • DC Resistance: 3.9mOhm Max
  • Current Rating: Up to 22 A
  • Q Value: 10 @ 100kHz
  • Self-Resonant Frequency: 95MHz
  • Package Size: 0.287" L x 0.260" W (7.30mm x 6.60mm)
  • Height Seated: 0.197" (5.00mm)
  • Temperature Range: -40°C to 150°C
