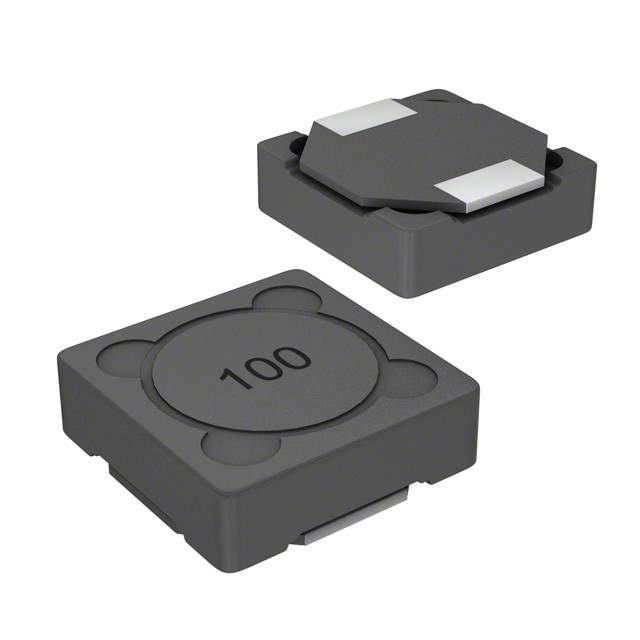

Same model may have multiple batches, images only for reference.

SRR1240-100M

Name: SRR1240-100M
Brand: Bourns Inc.
SKU: 1327937
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRR1240-100M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Description	FIXED IND 10UH 4A 32 MOHM SMD / 10 µH Shielded Drum Core, Wirewound Inductor 4 A 32mOhm Max Nonstandard
Datasheet	SRR1240-100M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Bourns Inc.
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	10 µH
Tolerance	±20%
Current Rating (Amps)	4 A
Current - Saturation (Isat)	4A
Shielding	Shielded
DC Resistance (DCR)	32mOhm Max
Q @ Freq	17 @ 2.52MHz
Frequency - Self Resonant	27MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max)	0.177" (4.50mm)
Base Product Number	SRR1240
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	-SRR1240-100MCT,-SRR1240-100M-ND,SRR1240-100M-ND,SRR1240-100MTR,-SRR1240-100MTR,SRR1240100M,-SRR1240-100M,SRR1240-100MCT
Standard Package	800
Win Source Part Number	1327937-SRR1240-100M
Ultra Librarian 3D Model	Ultra Librarian SRR1240-100M CAD Model

Alternative Products

Description

The Bourns Inc. 1327937-SRR1240-100M is a drum core, wirewound type of inductor.

Shielding: Shielded
Package: Reel - TR
Size/Dimension: 0.492 inches L x 0.492 inches W
Inductance: 10 µH
Height: 0.177 inches Max
Standard Package: 800
Mounting Type: Surface Mount
Tolerance: +/- 20%
Core Material: Ferrite
Q @ Freq: 17 @ 2.52MHz
Frequency Self-Resonant: 27MHz
Case/Package: Nonstandard
DC Resistance: 32mOhm max
Temperature Range: -40°C to 125°C
Current Rating: 4 A
Inductance Frequency-Test: 100 kHz
