Same model may have multiple batches, images only for reference.

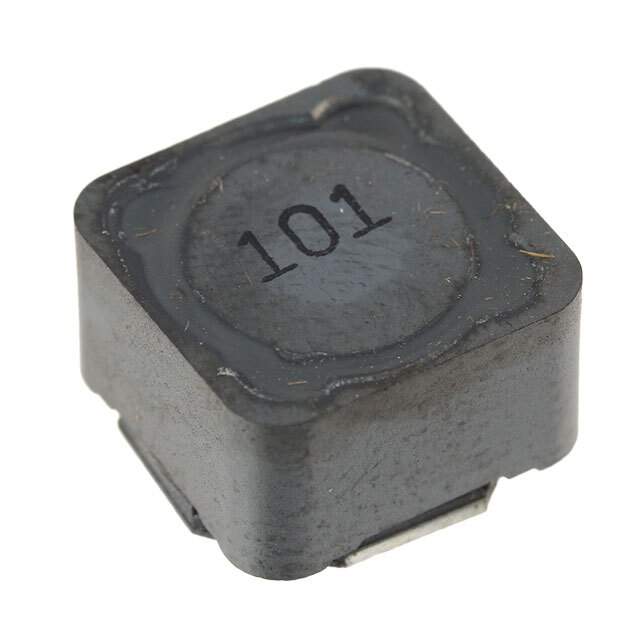

SRR1280-1R1Y Real Image
Same model may have multiple batches, images only for reference.

SRR1280-1R1Y

Part No SRR1280-1R1Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR1280-1R1Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR1280
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1.1 µH
Tolerance ±30%
Current Rating (Amps) 10.2 A
Current - Saturation (Isat) 14A
Shielding Shielded
DC Resistance (DCR) 6.5mOhm Max
Q @ Freq 26 @ 7.96MHz
Frequency - Self Resonant 85MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.315" (8.00mm)
Base Product Number SRR1280
Other Names SRR12801R1Y,SRR1280-1R1YDKR,SRR1280-1R1YCT,SRR1280-1R1Y,SRR1280-1R1YTR
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1273407-SRR1280-1R1Y
Ultra Librarian 3D Model Ultra Librarian SRR1280-1R1Y CAD Model

Description

The SRR1280 series from Bourns Inc. is a shielded drum core wirewound fixed inductor.

  • Inductance: 1.1 µH
  • Tolerance: ±30%
  • Mounting Type: SMD (SMT)
  • Core Material: ferrite
  • DC Resistance (DCR): 6.5mOhm max
  • Temperature Range: -40°C to 125°C
  • Rated Current: 10.2 A
  • Self-Resonant Frequency: 85MHz
  • Package/Case: nonstandard
  • Height Seated (Max): 0.315" (8.00mm)
  • Frequency: 7.96MHz
  • Q: 26
