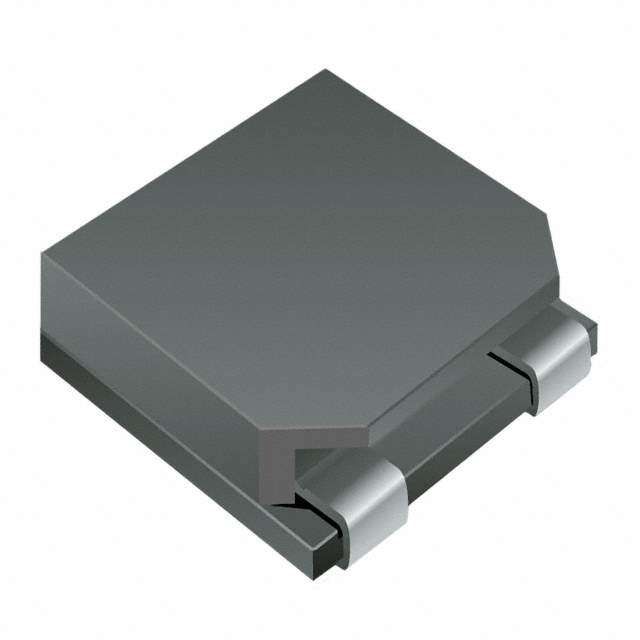

SRR1305-2R0ZL Real Image
Same model may have multiple batches, images only for reference.

SRR1305-2R0ZL

Part No SRR1305-2R0ZL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR1305-2R0ZL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR1305
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 2 µH
Tolerance ±25%
Current Rating (Amps) 13 A
Current - Saturation (Isat) 15A
Shielding Shielded
DC Resistance (DCR) 4.6mOhm Max
Frequency - Self Resonant 60MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.209" (5.30mm)
Base Product Number SRR1305
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1273369-SRR1305-2R0ZL
Ultra Librarian 3D Model Ultra Librarian SRR1305-2R0ZL CAD Model

Description

The SRR1305 series from Bourns Inc. is a drum core, wirewound inductor with a shielded package.

  • Inductance: 2 µH
  • Tolerance: ±25%
  • DC Resistance (DCR): 4.6mOhm Max
  • Height: 0.209" (5.30mm)
  • Package/Case: Non-standard
  • Dimensions: 0.492" L x 0.492" W (12.50mm x 12.50mm)
  • Mounting Type: SMD (SMT)
  • Current: 13 A
  • Operating Temperature Range: -40°C to 125°C
  • ECCN: EAR99 compliant
  • REACH: No impact
  • Standard Package Quantity: 600
