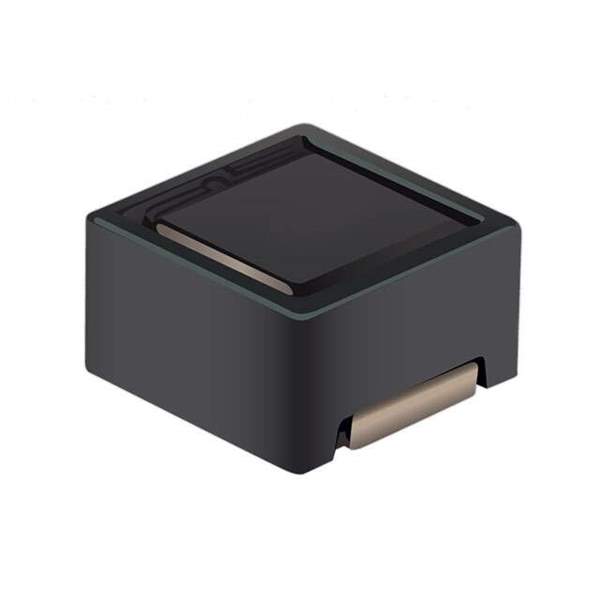

SRR4828A-151M Real Image
Same model may have multiple batches, images only for reference.

SRR4828A-151M

Part No SRR4828A-151M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR4828A-151M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR4828A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 150 µH
Tolerance ±20%
Current Rating (Amps) 600 mA
Current - Saturation (Isat) 280mA
Shielding Shielded
DC Resistance (DCR) 860mOhm Max
Frequency - Self Resonant 7MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.189" L x 0.189" W (4.80mm x 4.80mm)
Height - Seated (Max) 0.118" (3.00mm)
Base Product Number SRR4828A
Other Names SRR4828A-151MTR,SRR4828A-151MDKR,SRR4828A-151MCT
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273276-SRR4828A-151M
Ultra Librarian 3D Model Ultra Librarian SRR4828A-151M CAD Model

Description

The Bourns Inc. SRR4828A is a high-performance fixed inductor designed for use in a variety of applications, including automotive, industrial, and consumer electronics.

  • Features: Shielded drum core and wirewound technology
  • Inductance: 150 µH
  • Tolerance: ±20%
  • Operating Temperature Range: -40°C to 150°C
  • Current Rating: 600 mA
  • Supply and Demand Status: Balanced
  • MSL Level: Unlimited
