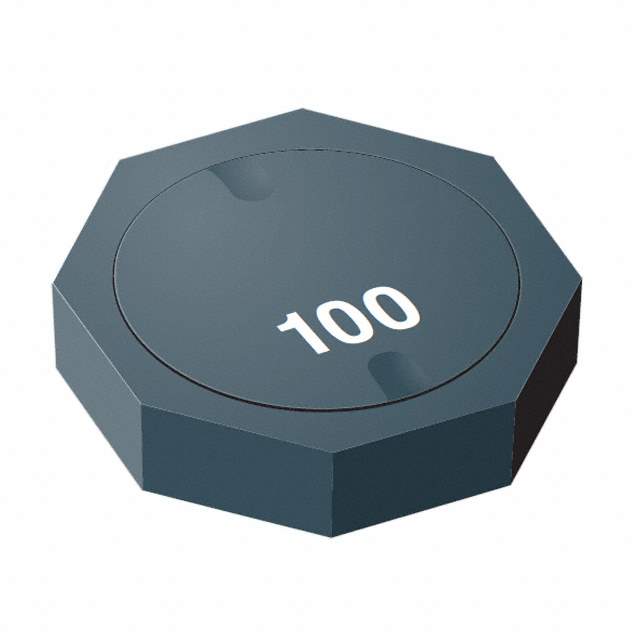

SRU1028A-121Y Real Image
Same model may have multiple batches, images only for reference.

SRU1028A-121Y

Part No SRU1028A-121Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRU1028A-121Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRU1028A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 120 µH
Tolerance ±30%
Current Rating (Amps) 700 mA
Current - Saturation (Isat) 700mA
Shielding Shielded
DC Resistance (DCR) 560mOhm Max
Q @ Freq 18 @ 796kHz
Frequency - Self Resonant 6MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) 0.122" (3.10mm)
Base Product Number SRU1028A
Other Names SRU1028A-121YDKR,SRU1028A-121YTR,SRU1028A-121Y,SRU1028A-121YCT
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273163-SRU1028A-121Y
Ultra Librarian 3D Model Ultra Librarian SRU1028A-121Y CAD Model

Description

The SRU1028A series drum core inductor is a fixed inductor with a shielding feature.

  • Type: Wirewound
  • Core Material: Ferrite
  • Inductance: 120 µH
  • Height: 0.122" (3.10mm)
  • Dimension: 0.394" L x 0.394" W (10.00mm x 10.00mm)
  • Mounting: SMD (SMT)
  • Tolerance: ±30%
  • Q @ Freq: 18 @ 796kHz
  • Frequency Self-Resonant: 6MHz
  • DC Resistance (DCR): 560mOhm Max
  • Current Rating: 700mA
  • Temperature Range: -40°C ~ 125°C
  • Manufacturer: Bourns Inc.
