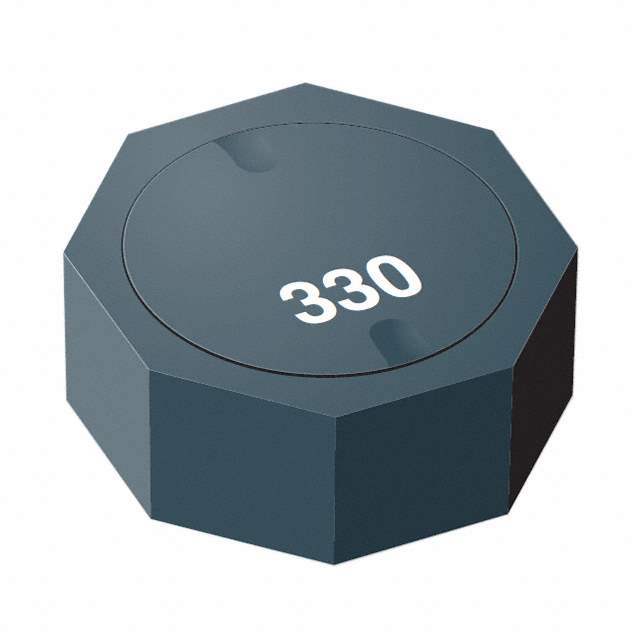

Same model may have multiple batches, images only for reference.

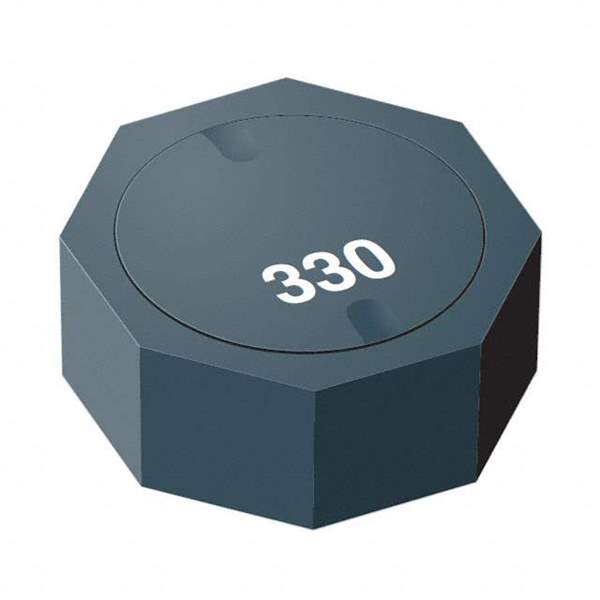

SRU1048A-220Y Real Image
Same model may have multiple batches, images only for reference.

SRU1048A-220Y

Part No SRU1048A-220Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 22UH 2.6A 55 MOHM SMD / 22 µH Shielded Drum Core, Wirewound Inductor 2.6 A 55mOhm Max Nonstandard
Datasheet
SRU1048A-220Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Bourns Inc.
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 µH
Tolerance ±30%
Current Rating (Amps) 2.6 A
Current - Saturation (Isat) 2A
Shielding Shielded
DC Resistance (DCR) 55mOhm Max
Q @ Freq 22 @ 2.52MHz
Frequency - Self Resonant 12MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) 0.201" (5.10mm)
Base Product Number SRU1048A
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number SRU1048A-220YDKR,SRU1048A-220YCT,SRU1048A-220Y-ND,SRU1048A-220YTR
Standard Package 600
Win Source Part Number 1327994-SRU1048A-220Y
Ultra Librarian 3D Model Ultra Librarian SRU1048A-220Y CAD Model

Description

The Bourns Inc. SRU1048A-220Y fixed inductor is a drum core, wirewound type of inductor that has an inductance of 22 µH.

  • Core Type: Drum Core, Wirewound
  • Inductance: 22 µH
  • Seated Height: 0.201 inches (5.10mm)
  • Mounting: Surface Mount
  • Tolerance: ±30%
  • DC Resistance (DCR): 55mOhm max
  • Core Material: Ferrite
  • Q @ Freq: 22 @ 2.52MHz
  • ECCN: EAR99
  • HTSUS: 8504.50.4000
