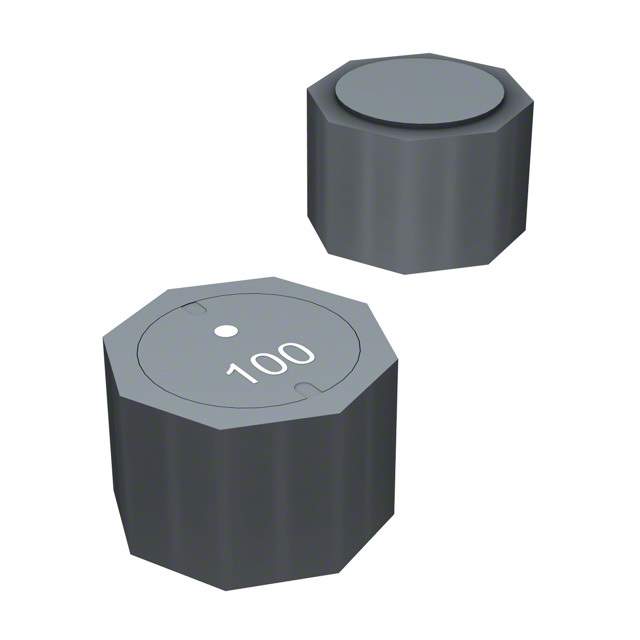

SRU1063-680Y Real Image
Same model may have multiple batches, images only for reference.

SRU1063-680Y

Part No SRU1063-680Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRU1063-680Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRU1063
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 68 µH
Tolerance ±30%
Current Rating (Amps) 1.2 A
Current - Saturation (Isat) 1.35A
Shielding Shielded
DC Resistance (DCR) 210mOhm Max
Q @ Freq 8 @ 2.52MHz
Frequency - Self Resonant 5MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) 0.268" (6.80mm)
Base Product Number SRU1063
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273117-SRU1063-680Y
Ultra Librarian 3D Model Ultra Librarian SRU1063-680Y CAD Model

Description

The SRU1063-680Y is a fixed inductor manufactured by Bourns Inc.

  • Series: SRU1063
  • Design: Drum core, wirewound
  • Shielded: Yes
  • Inductance: 68μH
  • Tolerance: ±30%
  • Current: Up to 1.2A
  • DC Resistance: 210mΩ max
  • Self-Resonant Frequency: 5MHz
  • Q Factor: 8 @ 2.52MHz
  • Applications: Power supplies, lighting systems, and motor controls
  • Temperature Range: -40°C to 125°C
