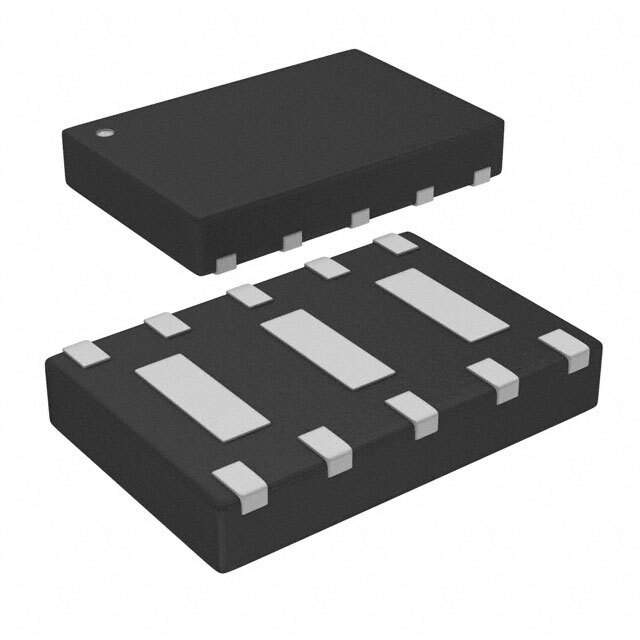

Same model may have multiple batches, images only for reference.

CDDFN10-2574N

Name: CDDFN10-2574N
Brand: Bourns Inc.
SKU: 967653
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	CDDFN10-2574N
Manufacturer	Bourns Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 2.5VWM 11VC 10DFN / 11V Clamp 45A (8/20µs) Ipp Tvs Diode Surface Mount 10-DFN (3x2)
Datasheet	CDDFN10-2574N Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Mfr	Bourns Inc.
Package	Tape & Reel
Type	Steering (Rail to Rail)
Unidirectional Channels	4
Voltage - Reverse Standoff (Typ)	2.5V (Max)
Voltage - Breakdown (Min)	3V
Voltage - Clamping (Max) @ Ipp	11V
Current - Peak Pulse (10/1000µs)	45A (8/20µs)
Power Line Protection	No
Applications	Ethernet
Capacitance @ Frequency	1.7pF @ 1MHz
Temperature Range - Operating	-55°C ~ 85°C (TA)
Mounting	SMD (SMT)
Package / Case	10-UDFN Exposed Pad
Supplier Device Package	10-DFN (3x2)
Base Product Number	CDDFN10
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	CDDFN10-2574NDKR,CDDFN10-2574NCT,CDDFN10-2574NTR
Standard Package	3,000
Win Source Part Number	967653-CDDFN10-2574N
Ultra Librarian 3D Model	Ultra Librarian CDDFN10-2574N CAD Model

Alternative Products

Description

The Bourns Inc. CDDFN10-2574N is a steering (rail to rail) diode that comes with a package of tape and reel. The diode has a voltage rating of 2.5V (Max) and a voltage breakdown of 3V. The diode has a capacitance of 1.7pF @ 1MHz and a current rating of 45A (8/20μs). The diode is rated as REACH unaffected and is suitable for use in Circuit Protection>TVS - Diodes.
