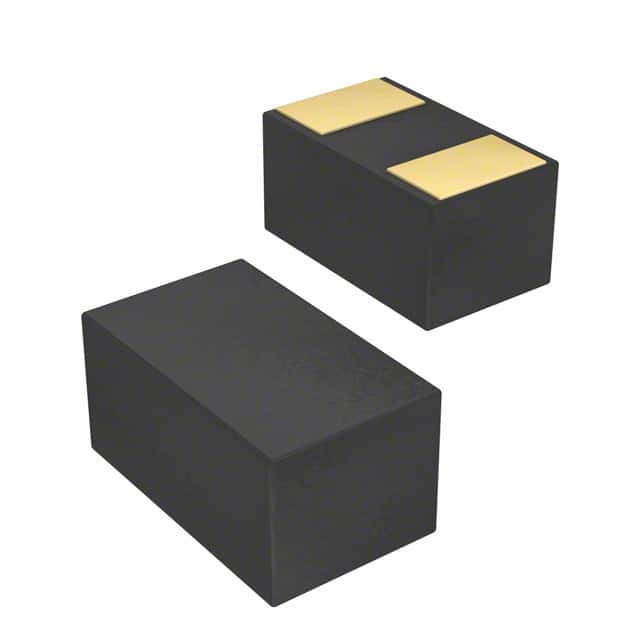

Same model may have multiple batches, images only for reference.

CDDFN2-T12C

Name: CDDFN2-T12C
Brand: Bourns Inc.
SKU: 846013
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	CDDFN2-T12C
Manufacturer	Bourns Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 12VWM 25VC 2DFN
Datasheet	CDDFN2-T12C Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Bourns Inc.
Package	Tape & Reel
Product Status	Obsolete
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	12V
Voltage - Breakdown (Min)	13V
Voltage - Clamping (Max) @ Ipp	25V
Current - Peak Pulse (10/1000µs)	1A (8/20µs)
Power - Peak Pulse	25W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	12pF @ 1MHz
Temperature Range - Operating	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	2-UFDFN
Supplier Device Package	2-DFN (1x0.6)
Base Product Number	CDDFN2
Standard Package	5,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	846013-CDDFN2-T12C
Ultra Librarian 3D Model	Ultra Librarian CDDFN2-T12C CAD Model

Alternative Products

Description

The CDDFN2-T12C is a TVS diode from Bourns Inc.

Type: Zener
Package: Tape and Reel
Application: General Purpose
Standard Package Quantity: 5,000 pieces
Voltage Reverse Standoff: 12V
Minimum Breakdown Voltage: 13V
Clamping Voltage: 25V @ 1A (10/1000µs)
Power Rating: 25W
Capacitance: 12pF @ 1MHz
Mounting Type: Surface Mountable
Package: 2-UFDFN
Operating Temperature Range: -40°C to 125°C
ECCN: EAR99
Status: Obsolete
