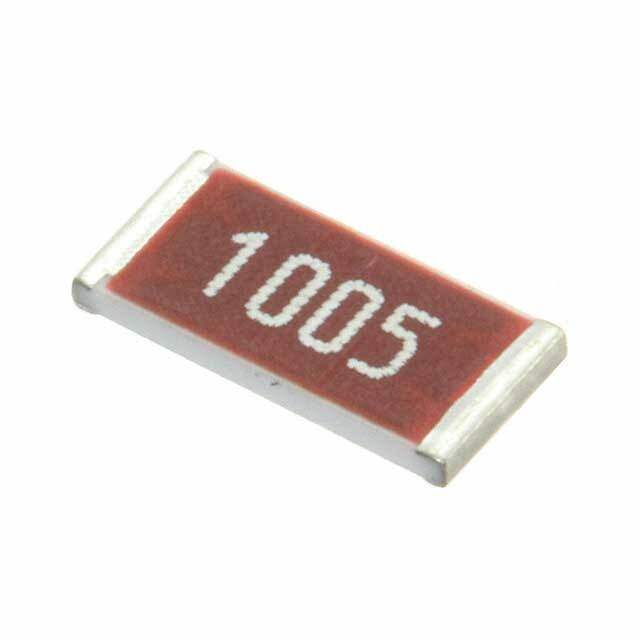

CHV2512-FX-1005ELF KOA Speer Electronics, Inc.
Same model may have multiple batches, images only for reference.

CHV2512-FX-1005ELF

Part No CHV2512-FX-1005ELF
Manufacturer Bourns Inc.
Catalog Chip Resistor - Surface Mount
Description RES SMD 10M OHM 1% 1W 2512
Datasheet
CHV2512-FX-1005ELF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1304092-CHV2512-FX-1005ELF
Manufacturer Bourns Inc.
Category Resistors- Chip Resistor - Surface Mount
Packaging  Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Resistance (Ohms) 10 MOhms
Tolerance ±1%
Power (Watts) 1W
Composition Thick Film
Features High Voltage
Package / Case 2512 (6432 Metric)
Ultra Librarian 3D Model Ultra Librarian CHV2512-FX-1005ELF CAD Model

Description

Features

  • Thick film
  • High voltage
  • Wide resistance range
  • RoHS compliant*
  • UL/IEC 60950 & 60065 compatible
