Same model may have multiple batches, images only for reference.

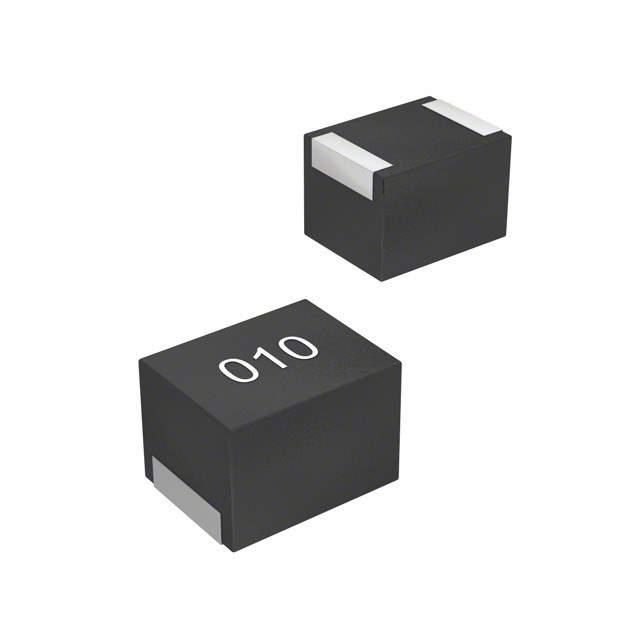

CMH322522-4R7KL Real Image
Same model may have multiple batches, images only for reference.

CMH322522-4R7KL

Part No CMH322522-4R7KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 4.7UH 220MA 1.5OHM SMD
Datasheet
CMH322522-4R7KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors
Estimated Pruduction Lead Time 23 Weeks
Features Shielded Wirewound Inductor 1.5Ohm Max 1210 (3225 Metric)
Manufacturer Bourns Inc.
Series CMH322522
Package Reel - TR
Operating Temperature Range -55°C ~ 125°C
Mounting Surface Mount
Package 1210 (3225 Metric)
Case / Package 1210
Family Name CMH322522
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number CMH322522-4R7KL-ND, CMH322522-4R7KLDKR, CMH322522-4R7KLTR, CMH322522-4R7KLCT
Quantity per package 2000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 866909-CMH322522-4R7KL
Ultra Librarian 3D Model Ultra Librarian CMH322522-4R7KL CAD Model

Description

The CMH322522-4R7KL is a shielded wirewound inductor manufactured by Bourns Inc.

  • Maximum Resistance: 1.5ohms
  • Package: 1210 (3225 metric)
  • Series: CMH322522
  • Category: Inductors
  • Operating Temperature Range: -55°C to 125°C
  • Supplied In: Reels of 2000
  • Estimated Production Lead Time: 23 weeks
