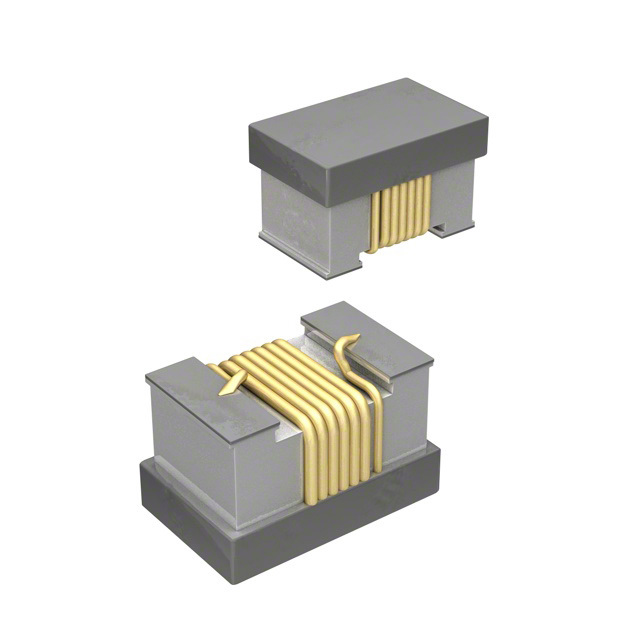

Same model may have multiple batches, images only for reference.
CW201212-22NJ Bourns Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

CW201212-22NJ

Part No CW201212-22NJ
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 22NH 600MA 100MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Drum Core, Wirewound
Material - Core Ceramic
Inductance 22 nH
Tolerance ±5%
Current Rating (Amps) 600 mA
Shielding Unshielded
DC Resistance (DCR) 100mOhm
Q @ Freq 60 @ 500MHz
Frequency - Self Resonant 3.3GHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 250 MHz
Mounting Type Surface Mount
Case / Package 0805 (2012 Metric)
Supplier Device Package 0805 (2012 Metric)
Size / Dimension 0.083" L x 0.059" W (2.10mm x 1.50mm)
Height - Seated (Max) 0.059\
Package Tape & Reel
Supply and Demand Status Normal
Win Source Part Number 1531935-CW201212-22NJ
Ultra Librarian 3D Model Ultra Librarian CW201212-22NJ CAD Model
