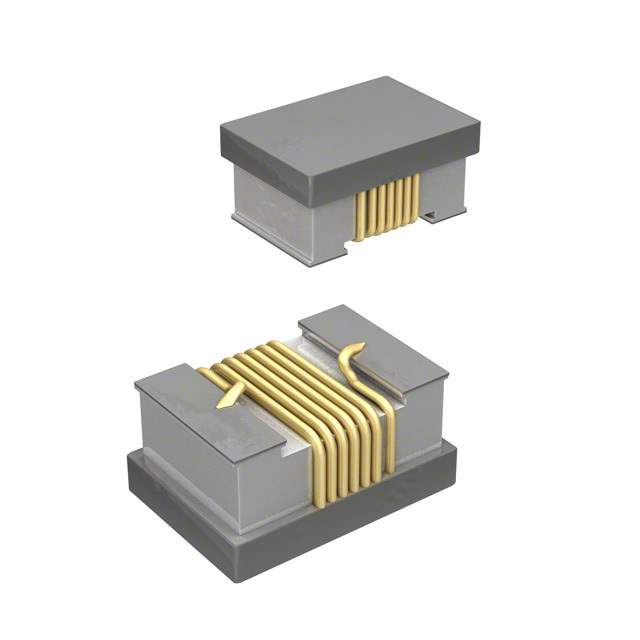

CW201212-47NJ Real Image
Same model may have multiple batches, images only for reference.

CW201212-47NJ

Part No CW201212-47NJ
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 47NH 500MA 150MOHM SMD / 47 nH Unshielded Drum Core, Wirewound Inductor 500 mA 150mOhm 0805 (2012 Metric)
Datasheet
CW201212-47NJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series CW201212
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ceramic
Inductance 47 nH
Tolerance ±5%
Current Rating (Amps) 500 mA
Shielding Unshielded
DC Resistance (DCR) 150mOhm
Q @ Freq 60 @ 500MHz
Frequency - Self Resonant 1.7GHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 200 MHz
Mounting SMD (SMT)
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805 (2012 Metric)
Dimension 0.083" L x 0.059" W (2.10mm x 1.50mm)
Height - Seated (Max) 0.059" (1.50mm)
Base Product Number CW201212
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names CW201212-47NJ-ND,CW201212-47NJTR,CW20121247NJ,CW201212-47NJDKR,CW201212-47NJCT
Standard Package 2,000
Win Source Part Number 1150672-CW201212-47NJ
Ultra Librarian 3D Model Ultra Librarian CW201212-47NJ CAD Model

Description

The CW201212-47NJ is a drum core, wirewound inductor from Bourns Inc. that is designed to be used in various electronic applications.

  • Manufacturer: Bourns Inc.
  • Inductor Type: Drum Core, Wirewound
  • Shielding: Unshielded
  • Inductance: 47 nH
  • Tolerance: ±5%
  • Seated Height (Max): 0.059 inches (1.50mm)
  • Package: 2,000
  • DC Resistance (DCR): 150mOhm
  • Q @ Freq: 60 @ 500MHz
  • Frequency Self-Resonant: 1.7GHz
  • Temperature Range: -40°C to 125°C
  • Dimensions: 0.083 inches L x 0.059 inches W (2.10mm x 1.50mm)
  • Core Material: Ceramic
