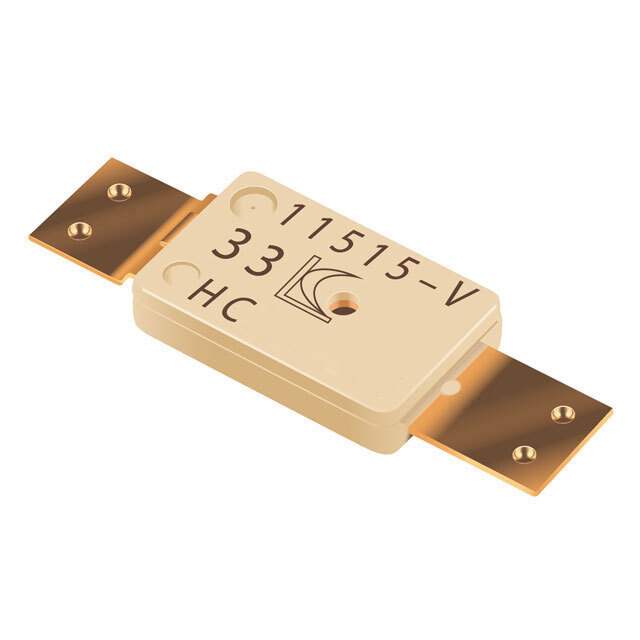

HC72AY Real Image
Same model may have multiple batches, images only for reference.

HC72AY

Part No HC72AY
Manufacturer Bourns Inc.
Catalog Temperature Sensors - Thermostats - Mechanical
Description TEMP REGULATOR NC 72 DEG 2-SMD
Datasheet
HC72AY Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Bourns Inc.
Status Active
Circuit SPST-NC
Switching Temperature 162°F (72°C)
Reset Temperature 104°F (40°C)
Current Rating - DC 25A (9V)
Tolerance ±9°F (±5°C)
Switching Cycles 6K
Termination Style Solder Pad
Mounting Weld Tab
Dimension 2-SMD
Win Source Part Number 204595-HC72AY
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HC72AY CAD Model

Description

The Bourns Inc. HC72AY is a high-quality SPST-NC circuit sensor that is designed for use in a variety of electronic applications.

  • Switching Temperature: 162°F (72°C)
  • Reset Temperature: 104°F (40°C)
  • Tolerance: ±9°F (±5°C)
  • Switching Cycle: 6K
  • Maximum Current Rating: 25A (9V)
  • Mounting: Weld tabs
  • Size: 2-SMD
  • Packaging: Tray
