Same model may have multiple batches, images only for reference.

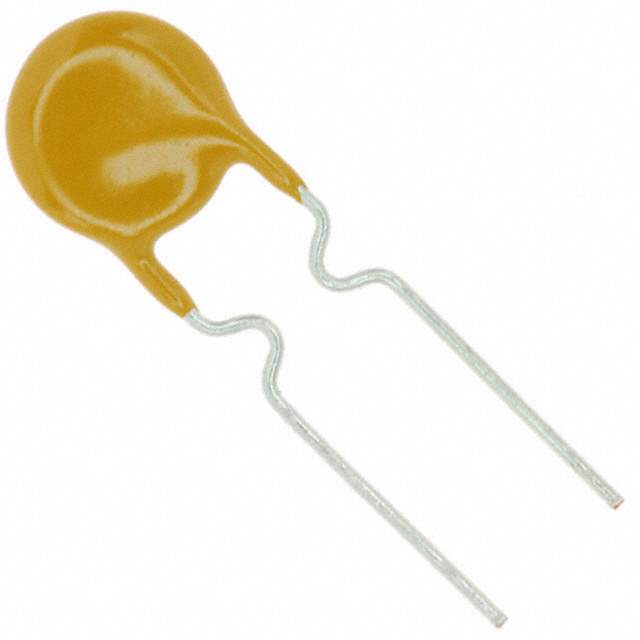

MF-R050-2-99 Real Image
Same model may have multiple batches, images only for reference.

MF-R050-2-99

Part No MF-R050-2-99
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE PTC RESETTABLE
Datasheet
MF-R050-2-99 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 60V
Current - Max 40A
Current - Hold (Ih) (Max) 500mA
Current - Trip (It) 1A
Time to Trip 4s
Resistance - Initial (Ri) (Min) 410 mOhm
Resistance - Post Trip (R1) (Max) 1.17 Ohm
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Dimension 0.311" Dia x 0.122" W (7.90mm x 3.10mm)
Height - Seated (Max) 0.539" (13.70mm)
Lead Spacing 0.201" (5.10mm)
Approvals cURus, TUV
Win Source Part Number 1075788-MF-R050-2-99
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MF-R050-2-99 CAD Model

Description

The MF-R050-2-99 is a polymeric circuit protection device designed for general-purpose applications manufactured by Bourns Inc.

  • Maximum Voltage: 60V
  • Maximum Current: 40A
  • Mounting Type: Through-Hole
  • Lead Spacing: 0.201” (5.10mm)
  • Height: 0.539” (13.70mm)
  • Diameter: 0.311”
  • Resistance: 410 mOhm (initial) and 1.17 Ohm (post-trip)
  • Current Hold: 500mA
  • Current Trip: 1A
  • Time to Trip: 4s
  • Temperature Range: -40°C to 85°C
  • Supply and Demand Status: Balanced
