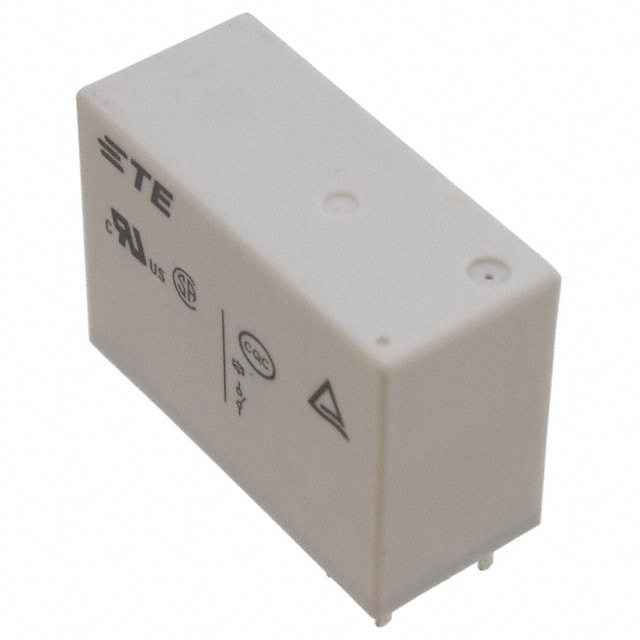

Same model may have multiple batches, images only for reference.
OZ-SS-112LM1,200 TE Connectivity
Same model may have multiple batches, images only for reference.

OZ-SS-112LM1,200

Part No OZ-SS-112LM1,200
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 12V / Power Relay 12VDC 16A SPST-NO(29.2x12.8x20.6)mm THT
Datasheet
OZ-SS-112LM1,200 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Series OZ, OEG
Packaging Tube
Relay Type General
Coil Type Non Latching
Coil Current 44.4mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16A
Switching Voltage 240VAC, 24VDC - Max
Turn On Voltage (Maximum) 9 VDC
Turn Off Voltage (Minimum) 0.6 VDC
Operate Time 20ms
Release Time 8ms
Features Insulation - Class A, Sealed - Flux Protection
Mounting Style Through Hole
Termination Style PC Pin
Contact Material Silver Tin Oxide (AgSnO)
Coil Power 540 mW
Coil Resistance 270 Ohms
Operating Temperature Range -30°C ~ 70°C
Win Source Part Number 791070-OZ-SS-112LM1,200
Popularity Medium
Supply and Demand Status Limited
Family Name OZ-SS-112LM1,200
Introduction Date November 19, 2004
ECCN EAR99
Country of Origin China, United States of America
Halogen Free Not Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian OZ-SS-112LM1,200 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays is a high-quality relay designed for various applications.
