Same model may have multiple batches, images only for reference.

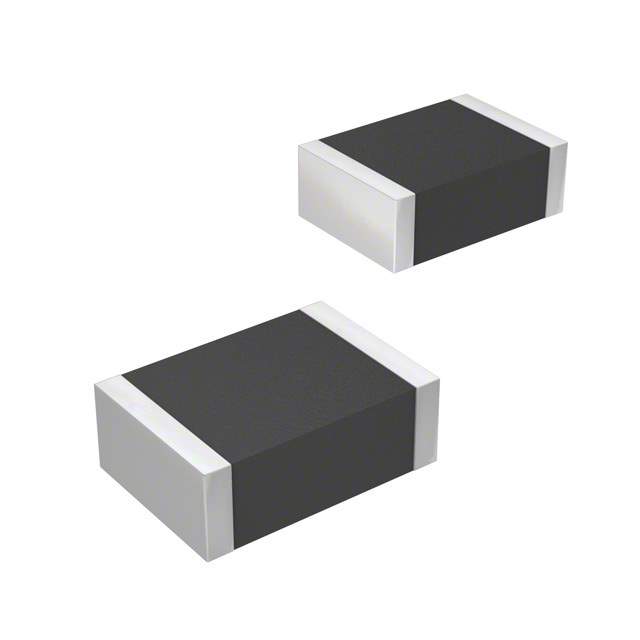

MH4532-800Y Real Image
Same model may have multiple batches, images only for reference.

MH4532-800Y

Part No MH4532-800Y
Manufacturer Bourns Inc.
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 80 OHM 1812 1LN  /  80 Ohms @ 100 MHz 1 Power, Signal Line Ferrite Bead 1812 (4532 Metric) 6A 10mOhm
Datasheet
MH4532-800Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Ferrite Beads and Chips
Mfr Bourns Inc.
Series MH
Package Tape & Reel
Product Status Obsolete
Filter Type Power, Signal Line
Number of Lines 1
Impedance @ Frequency 80 Ohms @ 100 MHz
Current Rating (Max) 6A
DC Resistance (DCR) (Max) 10mOhm
Temperature Range - Operating -55°C ~ 125°C
Package / Case 1812 (4532 Metric)
Mounting SMD (SMT)
Height (Max) 0.067" (1.70mm)
Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Base Product Number MH4532
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names MH4532800Y,MH4532-800Y-ND,MH4532-800YTR,MH4532-800YCT,MH4532-800YDKR
Standard Package 1,000
Win Source Part Number 1023361-MH4532-800Y
Ultra Librarian 3D Model Ultra Librarian MH4532-800Y CAD Model

Description

The Bourns Inc. MH4532-800Y is a power and signal line ferrite bead and chip filter.

  • Current Rating (Max): 6A
  • Impedance @ Frequency: 80 Ohms @ 100 MHz
  • DC Resistance (DCR) (Max): 10mOhm
  • Package/Case: 1812 (4532 Metric)
  • Mounting: SMD (SMT)
  • Height: 0.067" (1.70mm)
  • Temperature Range: -55°C ~ 125°C
  • Package: Tape & Reel
