Same model may have multiple batches, images only for reference.

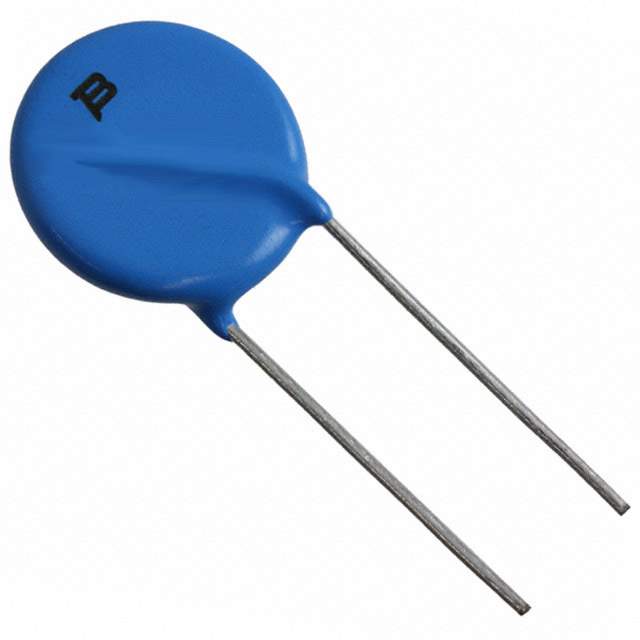

MOV-20D561KTR Real Image
Same model may have multiple batches, images only for reference.

MOV-20D561KTR

Part No MOV-20D561KTR
Manufacturer Bourns Inc.
Catalog TVS - Varistors, MOVs
Description VARISTOR 560V 6.5KA DISC 20MM
Datasheet
MOV-20D561KTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Varistor Voltage (Min) 504V
Varistor Voltage (Typ) 560V
Varistor Voltage (Max) 616V
Current - Surge 6.5kA
Energy 220J
Number of Circuits 1
Maximum AC Volts 350VAC
Maximum DC Volts 460VDC
Capacitance @ Frequency 710pF @ 1kHz
Temperature Range - Operating -40°C to 85°C (TA)
Mounting Through Hole
Dimension Disc 20mm
Win Source Part Number 101225-MOV-20D561KTR
Ultra Librarian 3D Model Ultra Librarian MOV-20D561KTR CAD Model

Description

The Bourns Inc. 101225-MOV-20D561KTR is a circuit protection component with a capacitance of 710pF @ 1kHz.

  • Varistor Voltage Range: 504V to 616V
  • Surge Current: 6.5kA
  • Maximum AC Volts: 350VAC
  • Maximum DC Volts: 460VDC
  • Energy: 220J
  • Temperature Range: -40°C to 85°C (TA)
  • Dimension: Disc 20mm
  • Mounting: Through hole
  • Status: Active
