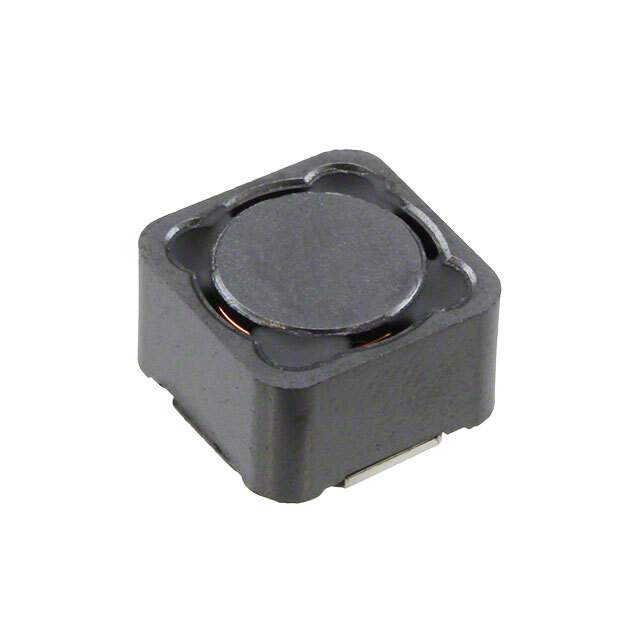

PM127SH-330M-RC Real Image
Same model may have multiple batches, images only for reference.

PM127SH-330M-RC

Part No PM127SH-330M-RC
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 33UH 3.5A 57 MOHM SMD / 33 µH Shielded Drum Core, Wirewound Inductor 3.5 A 57mOhm Max Nonstandard
Datasheet
PM127SH-330M-RC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series PM127SH
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 33 µH
Tolerance ±20%
Current Rating (Amps) 3.5 A
Current - Saturation (Isat) 3.3A
Shielding Shielded
DC Resistance (DCR) 57mOhm Max
Q @ Freq 28 @ 2.52MHz
Frequency - Self Resonant 9.5MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.315" (8.00mm)
Base Product Number PM127SH
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names PM127SH-330M-RCDKR,PM127SH330MRC,PM127SH-330M-RCCT,PM127SH-330M-RCTR
Standard Package 400
Win Source Part Number 1008811-PM127SH-330M-RC
Ultra Librarian 3D Model Ultra Librarian PM127SH-330M-RC CAD Model

Description

The PM127SH-330M-RC is a fixed inductor electronic component manufactured by Bourns Inc.

  • Series: PM127SH
  • Package: Tape & Reel
  • Shielding: Shielded
  • Inductance: 33µH
  • Height - Seated (Max): 0.315" (8.00mm)
  • Tolerance: ±20%
  • AEC-Q200: Yes
  • Material - Core: Ferrite
  • Frequency - Self Resonant: 9.5MHz
  • Package / Case: Nonstandard
  • Supplier Device Package: Not Specified
  • Temperature Range: -40°C ~ 125°C
  • Win Source Part Number: 1008811-PM127SH-330M-RC
