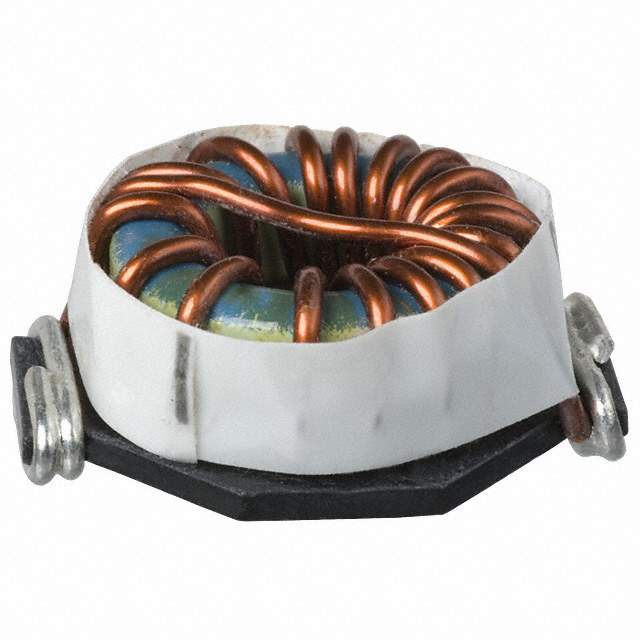

The PM2110-151K-RC is a power inductor manufactured by Bourns Inc. designed for use in various power supply and filtering applications. It offers a high inductance value and low DC resistance, making it suitable for efficient energy storage and filtering. It is constructed with high-quality materials to ensure reliable performance and long-term stability.

Applications

• DC-DC Converters: Energy storage and filtering in DC-DC converters.
• Power Supplies: Filtering and smoothing in power supply circuits.
• LED Lighting: Power management in LED lighting applications.
• EMI Filtering: Suppression of electromagnetic interference in electronic devices.
• Automotive Electronics: Power management in automotive electronic systems.

Features

• High Inductance: Provides effective energy storage and filtering.
• Low DC Resistance: Minimizes power loss and improves efficiency.
• High Current Capability: Handles high currents without saturation.
• Compact Size: Space-saving design for high-density applications.
• RoHS Compliant: Environmentally friendly and compliant with RoHS standards.

Benefits

• Improved Efficiency: Reduces power loss and enhances overall system efficiency.
• Enhanced System Performance: Provides stable and reliable performance in demanding applications.
• Reduced EMI: Minimizes electromagnetic interference and improves signal integrity.
• Simplified Circuit Design: Reduces the need for complex filtering circuits.
• Long-Term Reliability: Ensures stable and consistent performance over time.

Technical Specifications

The PM2110-151K-RC has an inductance value of 150 μH with a tolerance of ±10%. The DC resistance (DCR) is typically 0.34 Ohms. The saturation current is rated at 1.3 Amps, and the RMS current is rated at 1.2 Amps. It is a shielded inductor, which helps to minimize EMI. The operating temperature range is typically from -40°C to +125°C. The component is compliant with RoHS and is lead-free.
