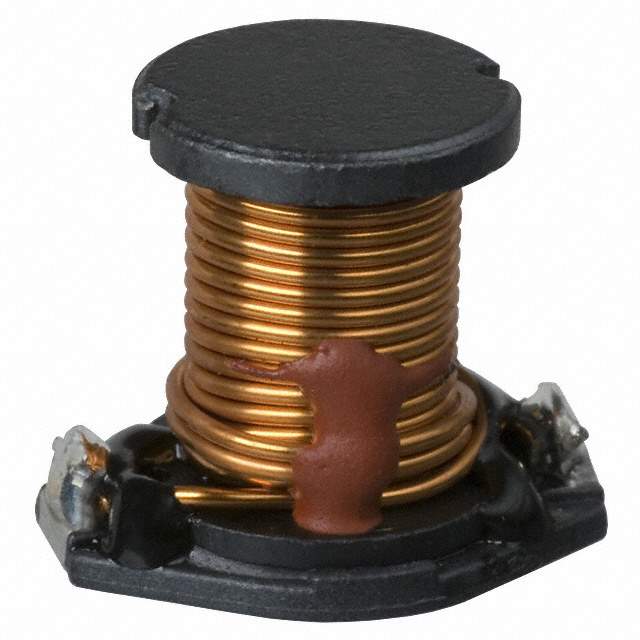

Same model may have multiple batches, images only for reference.

PM3340-330M-RC

Name: PM3340-330M-RC
Brand: Bourns Inc.
SKU: 1038146
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PM3340-330M-RC
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Description	FIXED IND 33UH 2A 80 MOHM SMD / 33 µH Unshielded Drum Core, Wirewound Inductor 2 A 80mOhm Max Nonstandard
Datasheet	PM3340-330M-RC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	PM3340
Package	Tape & Reel
Product Status	Obsolete
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	33 µH
Tolerance	±20%
Current Rating (Amps)	2 A
Current - Saturation (Isat)	4A
Shielding	Unshielded
DC Resistance (DCR)	80mOhm Max
Temperature Range - Operating	-55°C ~ 105°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.512" L x 0.402" W (13.00mm x 10.20mm)
Height - Seated (Max)	0.453" (11.50mm)
Base Product Number	PM3340
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	PM3340330MRC,M8586TR,M8586DKR,M8586CT
Standard Package	225
Win Source Part Number	1038146-PM3340-330M-RC
Ultra Librarian 3D Model	Ultra Librarian PM3340-330M-RC CAD Model

Alternative Products

Description

The supply and demand status of this component is limited.

Manufacturer: Bourns Inc.
Win Source Part Number: 1038146-PM3340-330M-RC
Type: Drum Core, Wirewound Inductor
Package/Case: Nonstandard
Core Material: Ferrite
Tolerance: ±20%
DC Resistance (Max): 80mOhm
