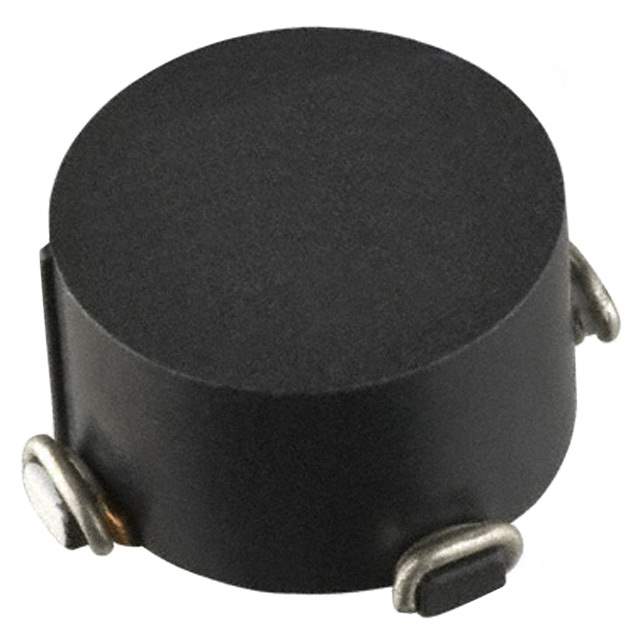

PM3700-20-RC Real Image
Same model may have multiple batches, images only for reference.

PM3700-20-RC

Part No PM3700-20-RC
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Description CMC 500UH 6A 2LN SMD / 500 µH @ 1 kHz 2 Line Common Mode Choke Surface Mount 6A DCR 10mOhm
Datasheet
PM3700-20-RC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Bourns Inc.
Series PM3700
Package Tape & Reel
Number of Lines 2
Inductance @ Frequency 500 µH @ 1 kHz
Current Rating (Max) 6A
DC Resistance (DCR) (Max) 10mOhm
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Dimension 0.850" L x 0.850" W (21.60mm x 21.60mm)
Height (Max) 0.450" (11.43mm)
Package / Case Horizontal, 4 PC Pad
Base Product Number PM3700
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names PM3700-20-RCCT,PM3700-20-RCDKR,PM3700-20-RCTR,PM370020RC
Standard Package 200
Win Source Part Number 1001178-PM3700-20-RC
Ultra Librarian 3D Model Ultra Librarian PM3700-20-RC CAD Model

Description

The PM3700-20-RC is a common mode choke that belongs to the PM3700 series and is manufactured by Bourns Inc.

  • Type: SMD (SMT)
  • Package/Case: Horizontal, 4 PC pad
  • Inductance: 500 μH @ 1 kHz
  • DC Resistance (DCR) (Max): 10mOhm
  • Maximum Current Rating: 6A
  • Operating Temperature: -55°C to 125°C
  • Dimension: 0.850" L x 0.850" W (21.60mm x 21.60mm)
  • Standard Package: 200 units
