Same model may have multiple batches, images only for reference.

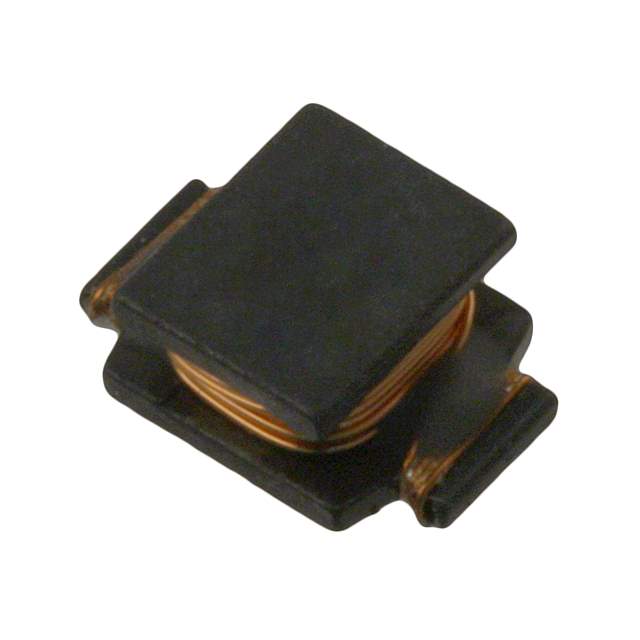

SDR0703-680KL Real Image
Same model may have multiple batches, images only for reference.

SDR0703-680KL

Part No SDR0703-680KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 68UH 380MA 900MOHM SMD / 68 µH Unshielded Drum Core, Wirewound Inductor 380 mA 900mOhm Max Nonstandard
Datasheet
SDR0703-680KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR0703
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 68 µH
Tolerance ±10%
Current Rating (Amps) 380 mA
Current - Saturation (Isat) 560mA
Shielding Unshielded
DC Resistance (DCR) 900mOhm Max
Q @ Freq 18 @ 2.52MHz
Frequency - Self Resonant 13MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.256" L x 0.177" W (6.50mm x 4.50mm)
Height - Seated (Max) 0.106" (2.70mm)
Base Product Number SDR0703
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names -SDR0703-680KLTR,SDR0703-680KLCT,SDR0703-680KLCT-ND,118-SDR0703-680KLCT,-SDR0703-680KL-ND,-SDR0703-680KLCT,SDR0703-680KLTR,-SDR0703-680KL,SDR0703-680KLTR-ND,118-SDR0703-680KLTR,118-SDR0703-680KLDKR,SDR0703-680KL-ND,SDR0703680KL
Standard Package 500
Win Source Part Number 984646-SDR0703-680KL
Ultra Librarian 3D Model Ultra Librarian SDR0703-680KL CAD Model

Description

The Bourns Inc. SDR0703-680KL is a drum core, wirewound inductor with an unshielded feature.

  • Inductance: 68 µH
  • Tolerance: ±10%
  • Height: 0.106 inches or 2.70mm
  • Maximum DC Resistance: 900mOhm
  • Package: Tape and reel
  • Mounting: SMD (SMT)
  • Q @ Freq: 18 @ 2.52MHz
  • Frequency Self-Resonant: 13MHz
  • Temperature Range: -40°C to 125°C
  • Current Rating: 380 mA
  • REACH: Unaffected
  • Description: Ideal for use in electronic circuits and is highly demanded in the market.
