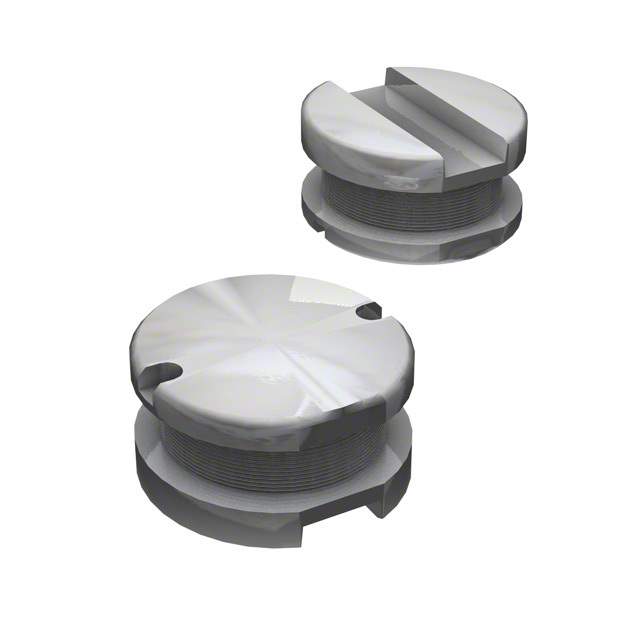

SDR1307-680KL Real Image
Same model may have multiple batches, images only for reference.

SDR1307-680KL

Part No SDR1307-680KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description SMD Power Inductors
Datasheet
SDR1307-680KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Bourns Inc.
Series SDR1307
Packaging Reel - TR
Type Wirewound
Material - Core Ferrite
Inductance 68μH
Tolerance ±10%
Current Rating 2.3A
Current - Saturation 3.5A
Shielding Unshielded
DC Resistance (DCR) 120 mOhm Max
Q @ Freq 24 @ 2.52MHz
Frequency - Self Resonant 7MHz
Operating Temperature Range -40°C ~ 125°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.512" L x 0.512" W (13.00mm x 13.00mm)
Height - Seated (Maximum) 0.287" (7.30mm)
Win Source Part Number 1247491-SDR1307-680KL
Manufacturer Homepage www.bourns.com
Popularity Medium
Supply and Demand Status Limited
Family Name SDR1307
Introduction Date December 16, 2002
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian SDR1307-680KL CAD Model

Description

The Bourns Inc. SDR1307-680KL is a wirewound inductor that is designed to operate in a temperature range of -40°C to 125°C.

  • Manufacturer: Bourns Inc.
  • Operating Temperature Range: -40°C to 125°C
  • Package: Nonstandard
  • Mounting: SMD technology
  • Tolerance: ±10%
  • Inductance: 68μH
  • Shielded: Unshielded
  • Current Rating: 2.3A
  • Core Material: Ferrite
  • Current Saturation: 3.5A
  • Q @ Freq: 24 @ 2.52MHz
  • Frequency Self-Resonant: 7MHz
  • Test Frequency: 100kHz
  • Series: SDR1307
  • Category: Inductors, Coils, Chokes
  • DC Resistance (DCR): 120 mOhm Max
  • Height Seated (Maximum): 0.287" (7.30mm)
  • Halogen-Free: Compliant
  • Estimated EOL Date: 2024
  • Supply and Demand Status: Limited
