Same model may have multiple batches, images only for reference.

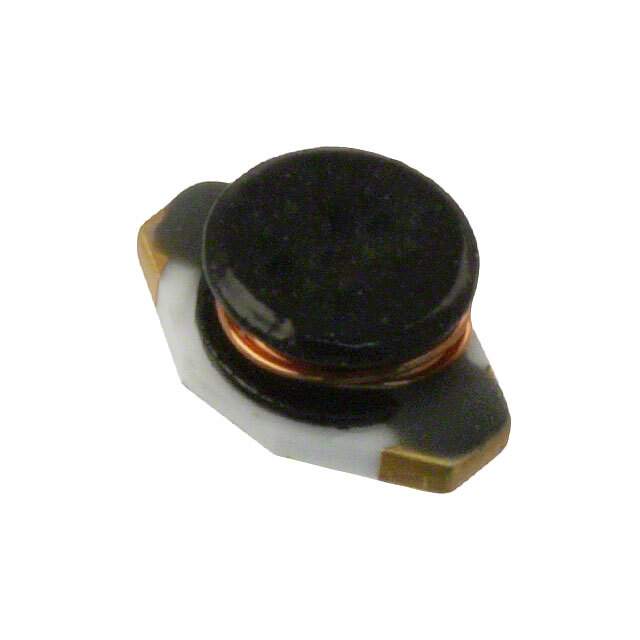

SDR6603-100M Real Image
Same model may have multiple batches, images only for reference.

SDR6603-100M

Part No SDR6603-100M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 10UH 1.1A 160 MOHM SMD / 10 µH Unshielded Drum Core, Wirewound Inductor 1.1 A 160mOhm Max Nonstandard
Datasheet
SDR6603-100M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR6603
Package Tape & Reel (TR),Cut Tape (CT)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 1.1 A
Current - Saturation (Isat) 1.1A
Shielding Unshielded
DC Resistance (DCR) 160mOhm Max
Q @ Freq 17 @ 2.52MHz
Frequency - Self Resonant 35MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.260" L x 0.175" W (6.60mm x 4.45mm)
Height - Seated (Max) 0.115" (2.92mm)
Base Product Number SDR6603
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names SDR6603100M,SDR6603-100M-ND,SDR6603-100MTR,-SDR6603-100M,-SDR6603-100M-ND,-SDR6603-100MTR,SDR6603-100MCT,-SDR6603-100MCT
Standard Package 600
Win Source Part Number 1131254-SDR6603-100M
Ultra Librarian 3D Model Ultra Librarian SDR6603-100M CAD Model

Description

The Bourns Inc. SDR6603-100M is a fixed inductor component that is widely used in various electronic devices.

  • Core Type: Drum Core
  • Type: Wirewound
  • Core Material: Ferrite
  • Package: 600
  • Tolerance: ±20%
  • Inductance: 10 µH
  • DC Resistance: 160mOhm max
  • Frequency Self-Resonant: 35MHz
  • Q @ Freq: 17 @ 2.52MHz
  • Supply and Demand: Limited
