Same model may have multiple batches, images only for reference.

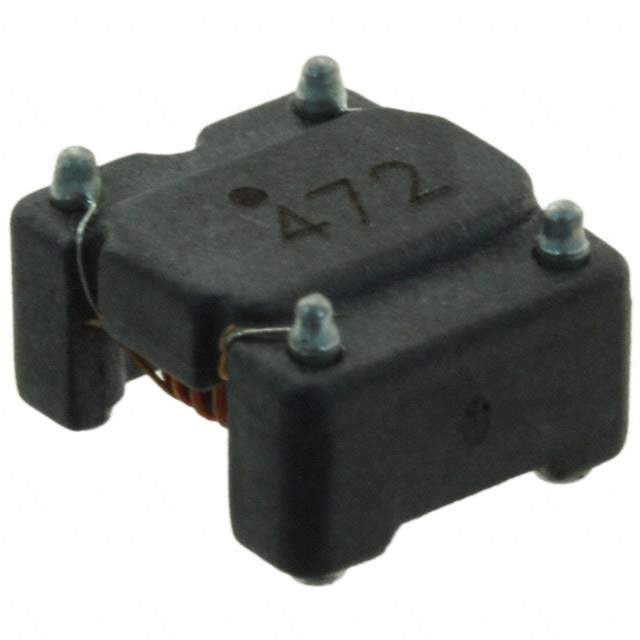

SRF1006-251Y Real Image
Same model may have multiple batches, images only for reference.

SRF1006-251Y

Part No SRF1006-251Y
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Datasheet
SRF1006-251Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Bourns Inc.
Series SRF1006
Package Tape & Reel
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 400 Ohms @ 5 MHz
Inductance @ Frequency 250 µH @ 100 kHz
Current Rating (Max) 1.19A
DC Resistance (DCR) (Max) 35mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -40°C ~ 105°C
Mounting SMD (SMT)
Dimension 0.394" L x 0.343" W (10.00mm x 8.70mm)
Height (Max) 0.256" (6.50mm)
Package / Case Horizontal, 4 PC Pad
Base Product Number SRF1006
Other Names SRF1006-251Y,SRF1006-251YTR,SRF1006-251YCT,SRF1006-251YDKR
Standard Package 800
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1277155-SRF1006-251Y
Ultra Librarian 3D Model Ultra Librarian SRF1006-251Y CAD Model

Description

The Bourns Inc. SRF1006-251Y is a common mode choke filter that belongs to the SRF1006 series.

  • Series: SRF1006 series
  • Availability: Win Source in tape and reel packaging
  • Voltage: 50V DC
  • Current Rating (Max): 1.19A
  • DC Resistance: 35mOhm
  • Application: Suitable for use in signal lines
  • Feature: Tested for its durability
  • Suitable For: Various electronic devices
