Same model may have multiple batches, images only for reference.

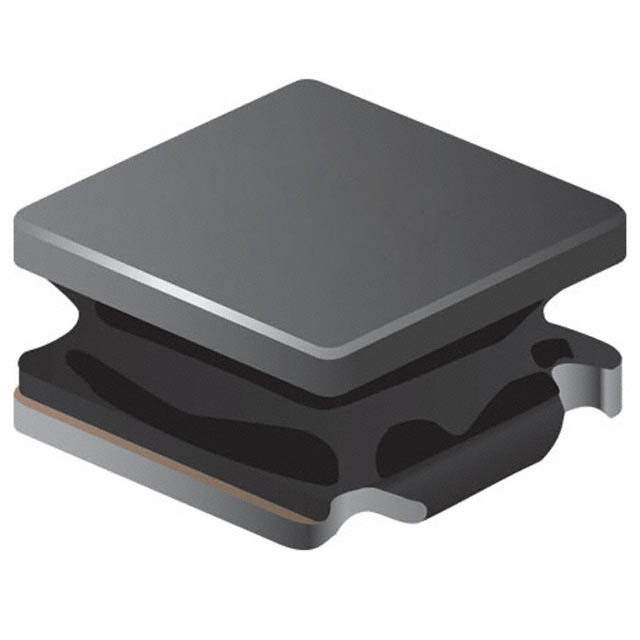

SRN3015-220M Real Image
Same model may have multiple batches, images only for reference.

SRN3015-220M

Part No SRN3015-220M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 22UH 600MA 622MOHM SMD / 22 µH Semi-Shielded Drum Core, Wirewound Inductor 600 mA 622mOhm Max Nonstandard
Datasheet
SRN3015-220M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN3015
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 600 mA
Current - Saturation (Isat) 580mA
Shielding Semi-Shielded
DC Resistance (DCR) 622mOhm Max
Q @ Freq 17 @ 2.52MHz
Frequency - Self Resonant 28MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.059" (1.50mm)
Base Product Number SRN3015
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names SRN3015220M,SRN3015-220MDKR,SRN3015-220MCT,SRN3015-220MTR
Standard Package 2,000
Win Source Part Number 1095359-SRN3015-220M
Ultra Librarian 3D Model Ultra Librarian SRN3015-220M CAD Model

Description

The SRN3015-220M fixed inductor by Bourns Inc. is a drum core, wirewound inductor with a semi-shielded package.

  • Inductance: 22 µH
  • Tolerance: ±20%
  • DC Resistance: 622mOhm max
  • Current Rating: 600mA
  • Q Factor: 17 @ 2.52MHz
  • Self-Resonant Frequency: 28MHz
  • Size: 0.118" L x 0.118" W (3.00mm x 3.00mm)
  • Packaging: tape and reel
  • Operating Temperature: -40°C to 125°C

This inductor is suitable for use in power supplies, filters, and other electronic circuits.
