Same model may have multiple batches, images only for reference.

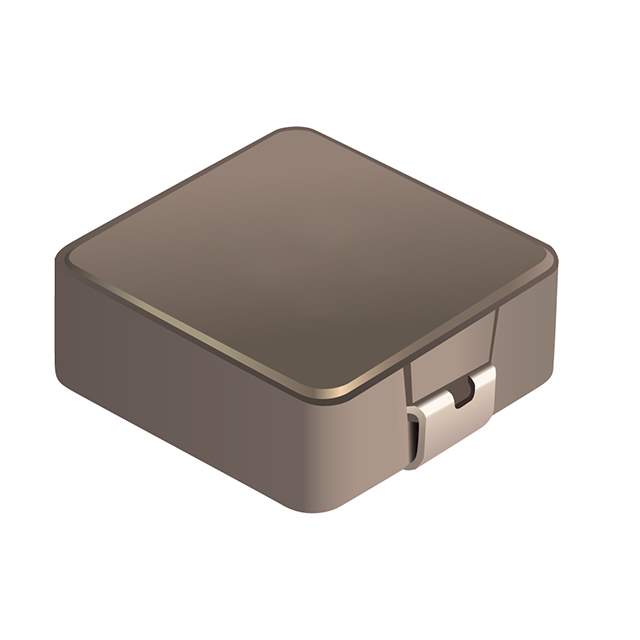

SRP1040VA-1R5M Real Image
Same model may have multiple batches, images only for reference.

SRP1040VA-1R5M

Part No SRP1040VA-1R5M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 1.5UH 22A 4.5MOHM SMD / 1.5 µH Shielded Drum Core, Wirewound Inductor 22 A 4.5mOhm Max Nonstandard
Datasheet
SRP1040VA-1R5M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP1040VA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Metal
Inductance 1.5 µH
Tolerance ±20%
Current Rating (Amps) 22 A
Current - Saturation (Isat) 27A
Shielding Shielded
DC Resistance (DCR) 4.5mOhm Max
Q @ Freq 15 @ 100kHz
Frequency - Self Resonant 36MHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 180°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.433" L x 0.394" W (11.00mm x 10.00mm)
Height - Seated (Max) 0.157" (4.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 118-SRP1040VA-1R5MCT,118-SRP1040VA-1R5MDKR,118-SRP1040VA-1R5MTR
Standard Package 500
Win Source Part Number 1095959-SRP1040VA-1R5M
Ultra Librarian 3D Model Ultra Librarian SRP1040VA-1R5M CAD Model

Description

The SRP1040VA-1R5M is a fixed inductor from Bourns Inc.

  • Inductance: 1.5µH
  • Tolerance: ±20%
  • Current Rating: 22 A
  • DC Resistance (DCR): 4.5mOhm max
  • Q @ Freq: 15 @ 100kHz
  • Frequency - Self Resonant: 36MHz
  • Shielded: Shielded
  • Package: Nonstandard
  • Height: 0.157" (4.00mm)
  • Dimension: 0.433" L x 0.394" W (11.00mm x 10.00mm)
