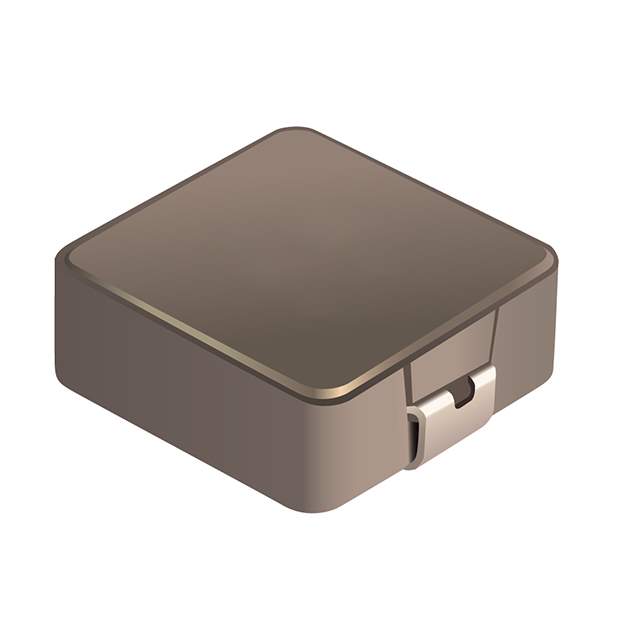

SRP1040VA-330M Real Image
Same model may have multiple batches, images only for reference.

SRP1040VA-330M

Part No SRP1040VA-330M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 33UH 5A 117.7MOHM SMD / 33 µH Shielded Drum Core, Wirewound Inductor 5 A 117.7mOhm Max Nonstandard
Datasheet
SRP1040VA-330M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP1040VA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Metal
Inductance 33 µH
Tolerance ±20%
Current Rating (Amps) 5 A
Current - Saturation (Isat) 5.3A
Shielding Shielded
DC Resistance (DCR) 117.7mOhm Max
Q @ Freq 20 @ 100kHz
Frequency - Self Resonant 6MHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 180°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.433" L x 0.394" W (11.00mm x 10.00mm)
Height - Seated (Max) 0.157" (4.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 118-SRP1040VA-330MCT,118-SRP1040VA-330MDKR,118-SRP1040VA-330MTR
Standard Package 500
Win Source Part Number 1231338-SRP1040VA-330M
Ultra Librarian 3D Model Ultra Librarian SRP1040VA-330M CAD Model

Description

The SRP1040VA-330M is a drum core, wirewound inductor from Bourns Inc. that has a shielding feature.

  • Inductance: 33 µH
  • Tolerance: ±20%
  • Q @ Freq: 20 @ 100kHz
  • Frequency Self-Resonant: 6MHz
  • DC Resistance (DCR): 117.7mOhm Max
  • Current Rating (Amps): 5 A
  • Height - Seated (Max): 0.157" (4.00mm)
  • Dimension: 0.433" L x 0.394" W (11.00mm x 10.00mm)
  • AEC-Q200: rated
  • Operating Temperature Range: -55°C ~ 180°C
  • Packaging: Tape & Reel
  • Standard Package: 500
