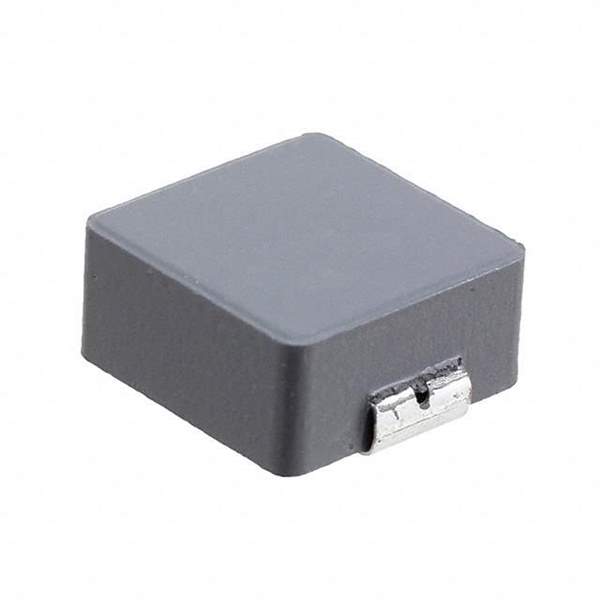

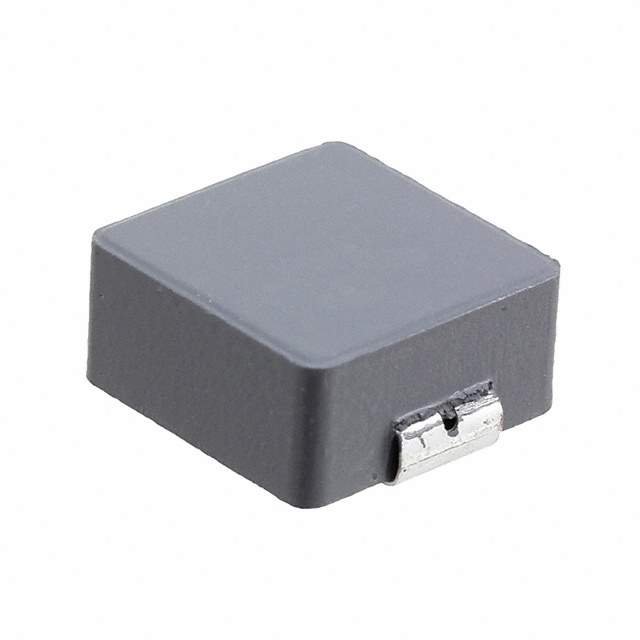

SRP1265A-8R2M Real Image SRP1265A-8R2M real image17445
Same model may have multiple batches, images only for reference.
SRP1265A-8R2M Real Image SRP1265A-8R2M real image17445
SRP1265A-8R2M Real Image SRP1265A-8R2M real image17445
Same model may have multiple batches, images only for reference.

SRP1265A-8R2M

Part No SRP1265A-8R2M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 8.2UH 10.5A 15.5 MOHM / 8.2 µH Shielded Drum Core, Wirewound Inductor 10.5 A 15.5mOhm Max Nonstandard
Datasheet
SRP1265A-8R2M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP1265A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 8.2 µH
Tolerance ±20%
Current Rating (Amps) 10.5 A
Current - Saturation (Isat) 16A
Shielding Shielded
DC Resistance (DCR) 15.5mOhm Max
Q @ Freq 20 @ 100kHz
Frequency - Self Resonant 11MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.531" L x 0.492" W (13.50mm x 12.50mm)
Height - Seated (Max) 0.252" (6.40mm)
Base Product Number SRP1265A
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names SRP1265A-8R2MTR,SRP1265A-8R2MDKR,SRP1265A-8R2MCT
Standard Package 500
Win Source Part Number 988531-SRP1265A-8R2M
Ultra Librarian 3D Model Ultra Librarian SRP1265A-8R2M CAD Model

Description

The Bourns Inc. SRP1265A-8R2M is a drum core, wirewound inductor with a shielding feature.

  • Type: Drum Core, Wirewound, Shielded
  • Inductance: 8.2 µH
  • Tolerance: ±20%
  • Height: 0.252 inches or 6.40mm
  • Max DC Resistance: 15.5mOhm
  • Package: Tape and Reel
  • Mounting Style: SMD (SMT)
  • Q @ Freq: 20 @ 100kHz
  • Frequency Self-Resonant: 11MHz
  • Temperature Range: -40°C to 150°C
  • AEC-Q200: Rated
  • Current Rating: 10.5 A
  • Material: Carbonyl Powder
  • Package/Case: Nonstandard
  • Application: Circuit Protection
