Same model may have multiple batches, images only for reference.

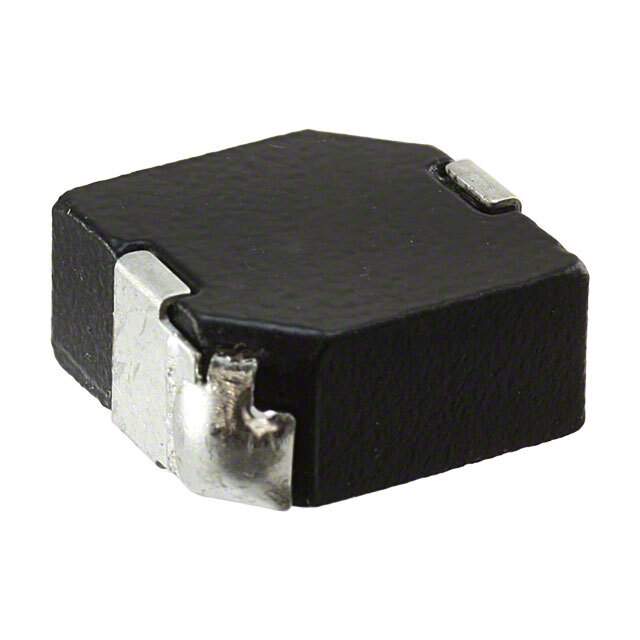

SRP1270-6R8M Real Image
Same model may have multiple batches, images only for reference.

SRP1270-6R8M

Part No SRP1270-6R8M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description SRP1270 Series - Shielded Power Inductors
Datasheet
SRP1270-6R8M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Bourns Inc.
Series SRP1270
Packaging Reel - TR
Type Wirewound
Material - Core Iron
Inductance 6.8μH
Tolerance ±20%
Current Rating 12A
Current - Saturation 21A
Shielding Shielded
DC Resistance (DCR) 14 mOhm Max
Frequency - Self Resonant 12MHz
Operating Temperature Range -55°C ~ 125°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.539" L x 0.539" W (13.70mm x 13.70mm)
Height - Seated (Maximum) 0.276" (7.00mm)
Win Source Part Number 1258814-SRP1270-6R8M
Manufacturer Homepage www.bourns.com
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Power Management, Industrial
Family Name SRP1270
Introduction Date January 25, 2008
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2019
Ultra Librarian 3D Model Ultra Librarian SRP1270-6R8M CAD Model

Description

The Bourns SRP1270-6R8M is a wirewound inductor that is designed for use in power management and industrial applications.

  • Inductance: 6.8μH
  • Current Rating: 12A
  • Tolerance: ±20%
  • Shielded: shielded
  • Saturation Current: 21A
  • Operating Temperature Range: -55°C to 125°C
  • Mounting Type: surface mount
  • Package: nonstandard
  • Core Material: iron core
  • Self-Resonant Frequency: 12MHz
  • Size: 0.539" L x 0.539" W (13.70mm x 13.70mm)
  • Packaging: reel - TR
  • Series: SRP1270
  • Category: inductors, coils, and chokes
  • DC Resistance (DCR): 14 mOhm Max
  • Manufacturer Location: Taiwan
  • Halogen-Free: compliant with the halogen-free standard
