Introducing the FCPF360N65S3R0L-F154 Power MOSFET from ON Semiconductor

The FCPF360N65S3R0L-F154 is a cutting-edge power MOSFET designed by ON Semiconductor, a company renowned for their innovative approach in semiconductor solutions. This MOSFET is part of the high-performance, high-efficiency portfolio that ON Semiconductor offers to cater to the ever-growing demands of modern power electronics.

This device is built using ON Semiconductor's proprietary PowerTrench® technology that provides an optimal balance between low on-resistance (R<sub>DS(on)) and low gate charge (Q<sub>G), leading to superior switching performance and thermal characteristics. The FCPF360N65S3R0L-F154 is specifically designed to handle high continuous drain currents of up to 47A, making it an excellent choice for applications requiring high power density and efficiency.

Key Features

• Voltage Rating: With a drain-to-source voltage (V<sub>DSS) of 650V, this MOSFET can handle high voltage applications with ease.
• Low R<sub>DS(on): The device features an ultra-low on-resistance of 0.154Ω, which minimizes conduction losses and improves overall efficiency.
• High Current Capability: The FCPF360N65S3R0L-F154 can sustain a continuous drain current (I<sub>D) of 47A, supporting heavy-load conditions without performance degradation.
• Robust Body Diode: A fast and soft recovery body diode ensures reduced switching losses and enhances reliability during reverse recovery conditions.

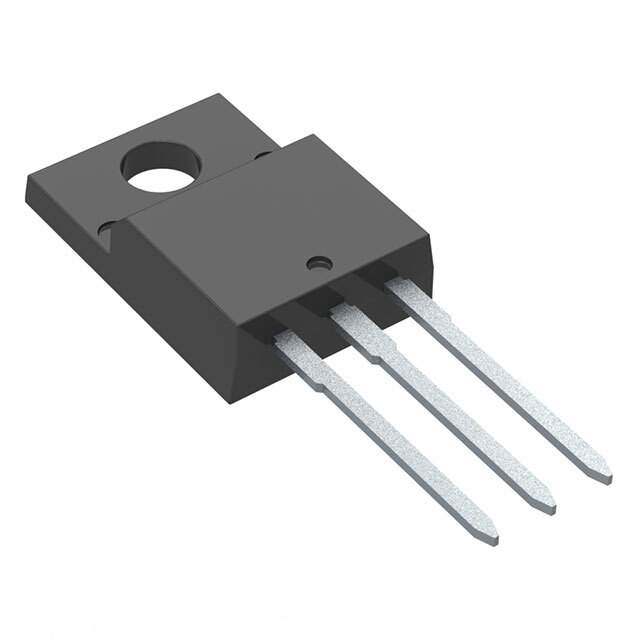

• TO-220 Package: Enclosed in a TO-220 package, the MOSFET provides a familiar and easy-to-use solution for PCB designs, ensuring compatibility with a wide range of heat sinks and cooling systems.

Applications

The robustness and efficiency of the FCPF360N65S3R0L-F154 make it suitable for a diverse range of high-performance applications, including:

• Switch Mode Power Supplies (SMPS)
• Uninterruptible Power Supplies (UPS)
• Power Inverter Systems
• High-Efficiency DC-DC Converters
• Motor Drives and Inverters
• LED Lighting

With its advanced technology and superior performance characteristics, the FCPF360N65S3R0L-F154 from ON Semiconductor is an ideal choice for engineers and designers looking to push the boundaries of power efficiency and thermal management in their next project.
