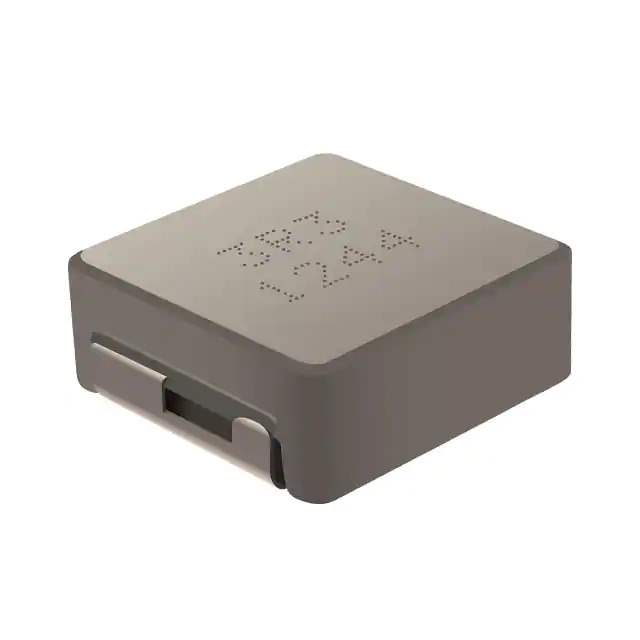

Same model may have multiple batches, images only for reference.

SRP1770TA-4R7M

Name: SRP1770TA-4R7M
Brand: Bourns Inc.
SKU: 852054
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRP1770TA-4R7M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Description	FIXED IND 4.7UH 25A 5.5 MOHM SMD
Datasheet	SRP1770TA-4R7M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Bourns Inc.
Series	SRP1770TA
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Carbonyl Powder
Inductance	4.7 µH
Tolerance	±20%
Current Rating (Amps)	25 A
Current - Saturation (Isat)	41A
Shielding	Shielded
DC Resistance (DCR)	5.5mOhm Max
Q @ Freq	20 @ 100kHz
Frequency - Self Resonant	15MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 150°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.665" L x 0.665" W (16.90mm x 16.90mm)
Height - Seated (Max)	0.276" (7.00mm)
Base Product Number	SRP1770TA
Standard Package	200 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
California Prop 65	Warning Information
Win Source Part Number	852054-SRP1770TA-4R7M
Ultra Librarian 3D Model	Ultra Librarian SRP1770TA-4R7M CAD Model

Alternative Products

Description

The SRP1770TA-4R7M is a shielded drum core, wirewound inductor from Bourns Inc.

Type: Wirewound
Material - Core: Carbonyl Powder
Inductance: 4.7 µH
Tolerance: ±20%
Current Rating: 25 A
Current - Saturation: 25A
Shielding: Shielded
DC Resistance (DCR): 5.5mOhm Max
Size / Dimension: 0.665" L x 0.665" W (16.90mm x 16.90mm)
Height - Seated (Max): 0.276" (7.00mm)
Operating Temperature: -40°C ~ 150°C
Mounting Type: Surface Mount
Series: SRP1770TA
Rating: AEC-Q200
Package: Nonstandard
Standard Package: 200 pcs
