Same model may have multiple batches, images only for reference.

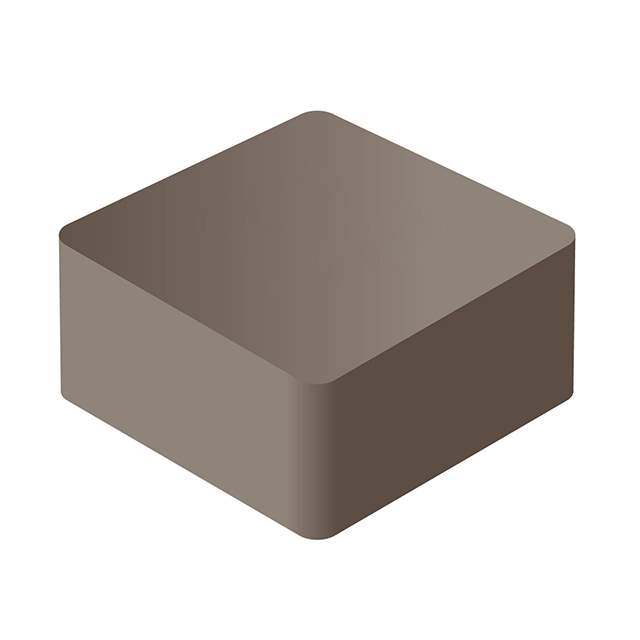

SRP4030FA-3R3M Real Image
Same model may have multiple batches, images only for reference.

SRP4030FA-3R3M

Part No SRP4030FA-3R3M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 3.3UH 6.6A 28.6MOHM SM / 3.3 µH Shielded Drum Core, Wirewound Inductor 6.6 A 28.6mOhm Max Nonstandard
Datasheet
SRP4030FA-3R3M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP4030FA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Iron Powder
Inductance 3.3 µH
Tolerance ±20%
Current Rating (Amps) 6.6 A
Current - Saturation (Isat) 4.8A
Shielding Shielded
DC Resistance (DCR) 28.6mOhm Max
Q @ Freq 10 @ 100kHz
Frequency - Self Resonant 28MHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 155°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.161" L x 0.161" W (4.10mm x 4.10mm)
Height - Seated (Max) 0.118" (3.00mm)
Base Product Number SRP4030FA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names SRP4030FA-3R3MDKR,SRP4030FA-3R3MCT,SRP4030FA-3R3MTR
Standard Package 2,000
Win Source Part Number 1151412-SRP4030FA-3R3M
Ultra Librarian 3D Model Ultra Librarian SRP4030FA-3R3M CAD Model

Description

The Bourns Inc. SRP4030FA-3R3M is a high-quality electronic component that is designed for use in inductors, coils, and chokes.

  • Series: SRP4030FA
  • Type: Drum Core, Wirewound
  • Packaging: Tape and Reel
  • Shielded: Yes
  • Inductance: 3.3 µH
  • Tolerance: ±20%
  • AEC-Q200: Yes
  • Maximum DC Resistance (DCR): 28.6mOhm
  • Temperature Range: -55°C to 155°C
  • Standard Package Quantity: 2,000
  • Current Rating (Amps): 6.6A
  • Inductance Frequency Test: 100kHz
  • REACH Status: REACH unaffected
  • HTSUS: 8504.50.8000
