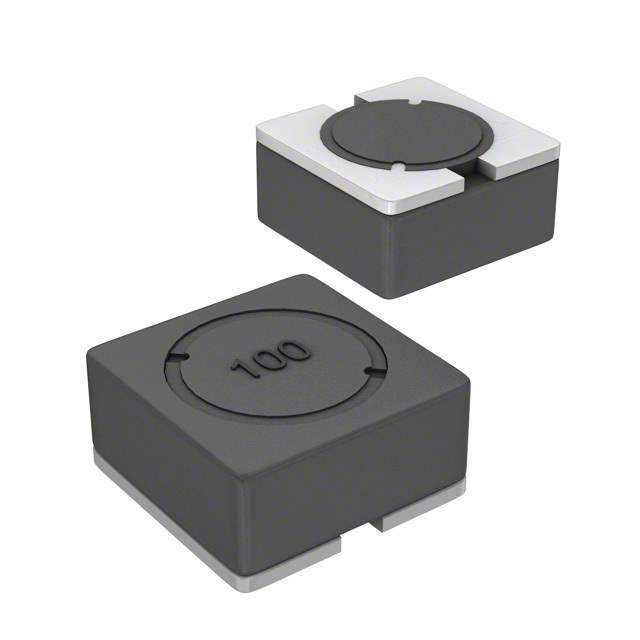

SRR5028-331Y Real Image
Same model may have multiple batches, images only for reference.

SRR5028-331Y

Part No SRR5028-331Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 330UH 200MA 2 OHM SMD / 330 µH Shielded Drum Core, Wirewound Inductor 200 mA 2Ohm Max Nonstandard
Datasheet
SRR5028-331Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR5028
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 330 µH
Tolerance ±30%
Current Rating (Amps) 200 mA
Current - Saturation (Isat) 200mA
Shielding Shielded
DC Resistance (DCR) 2Ohm Max
Q @ Freq 8 @ 796kHz
Frequency - Self Resonant 5MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max) 0.118" (3.00mm)
Base Product Number SRR5028
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names SRR5028-331YTR,SRR5028-331Y-ND,SRR5028-331YCT,SRR5028-331YDKR
Standard Package 400
Win Source Part Number 1170088-SRR5028-331Y
Ultra Librarian 3D Model Ultra Librarian SRR5028-331Y CAD Model

Description

The SRR5028 series is a shielded drum core, wirewound fixed inductor designed for use in electronic devices from Bourns.

  • Inductance: 330µH
  • Current Rating: 200mA
  • Q @ Freq: 8 @ 796kHz
  • Frequency of Self-Resonant: 5MHz
  • Package: Tape and Reel
  • Mounting Style: SMD (SMT)
  • Size: Nonstandard
  • Operating Temperature: -40°C to 125°C
  • RoHS Compliant: Yes
  • UL Approval: Yes
