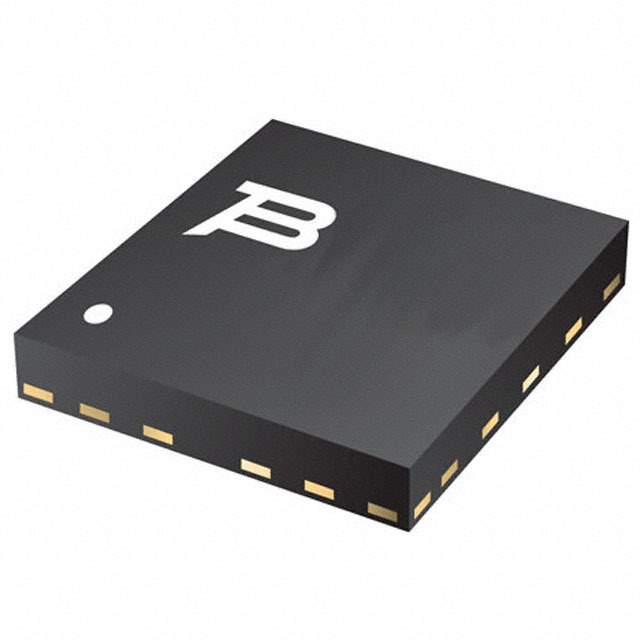

Same model may have multiple batches, images only for reference.

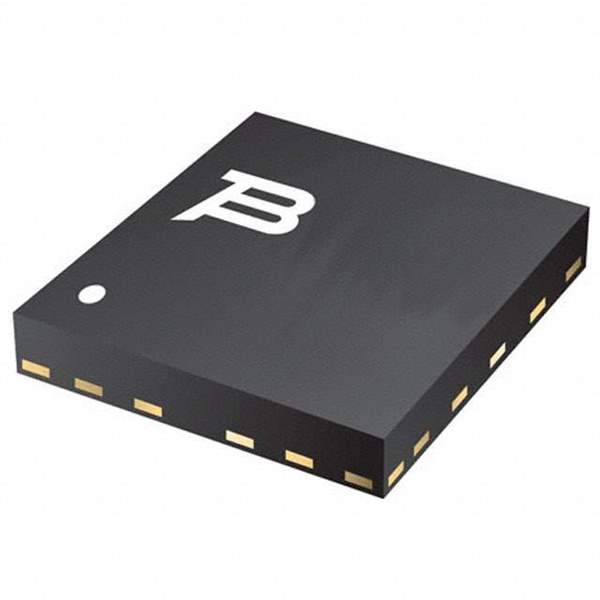

TBU-DT085-500-WH Real Image
Same model may have multiple batches, images only for reference.

TBU-DT085-500-WH

Part No TBU-DT085-500-WH
Manufacturer Bourns Inc.
Catalog Surge Suppression ICs
Description SURGE SUPP TBU DL 500MA 850V SMD
Datasheet
TBU-DT085-500-WH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Voltage - Clamping 850V
Technology Internal Switch
Number of Circuits 2
Applications Ethernet
Mounting SMD (SMT)
Case / Package 4-DFN (5x5)
Voltage - Working 425V
Win Source Part Number 097559-TBU-DT085-500-WH
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Audio, Imaging, Video & Vision
Ultra Librarian 3D Model Ultra Librarian TBU-DT085-500-WH CAD Model

Description

The Bourns Inc. 097559-TBU-DT085-500-WH is a circuit protection device designed for use in Ethernet applications.

  • Circuits: Two circuits
  • Technology: Internal switch technology
  • Working Voltage: 425V
  • Clamping Voltage: 850V
  • Mounting: SMD (SMT) technology
  • Package: 4-DFN (5x5) package
  • Supply and Demand Status: Balance
  • Popularity: Medium
  • Applications: Audio, imaging, video, and vision applications
