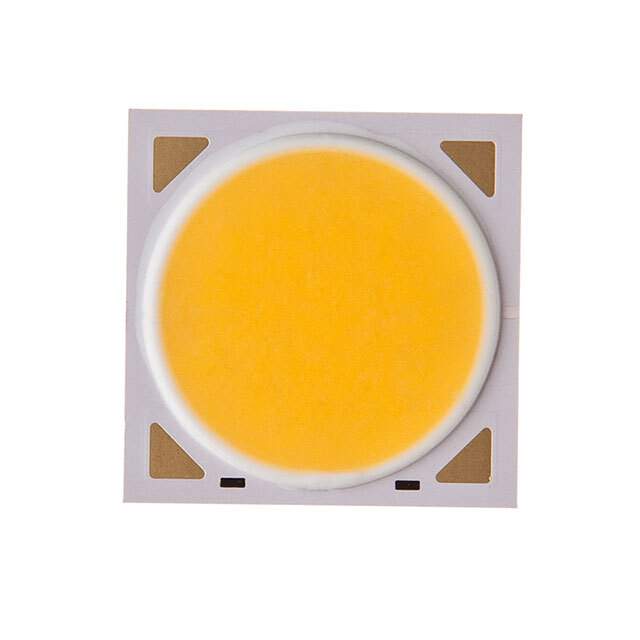

BXRE-30E2000-C-23 Real Image
Same model may have multiple batches, images only for reference.

BXRE-30E2000-C-23

Part No BXRE-30E2000-C-23
Manufacturer Bridgelux
Catalog LED Lighting - COBs, Engines, Modules
Description LED ARRAY 2000LM WARM WHITE COB / LED Lighting COBs Engines Modules Chip On Board (COB) series White, Warm Square
Datasheet
BXRE-30E2000-C-23 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Bridgelux
Series V13 Array
Package Tray
Product Status Obsolete
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3000K 3-Step MacAdam Ellipse
Configuration Square
Luminous Flux @ Current/Temperature 2133lm (Typ)
Current - Test 500mA
Temperature - Test 25°C
Voltage - Forward (Vf) (Typ) 32.3V
Lumens/Watt @ Current - Test 132 lm/W
Current - Max 1.05A
CRI (Color Rendering Index) 80
Viewing Angle 120°
Dimension 15.80mm L x 15.80mm W
Height 1.70mm
Light Emitting Surface (LES) 13.40mm Dia
Lens Type Flat
Base Product Number BXRE-30
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 976-1321,BXRE-30E2000-C-23-ND
Standard Package 840
Win Source Part Number 1161501-BXRE-30E2000-C-23
Ultra Librarian 3D Model Ultra Librarian BXRE-30E2000-C-23 CAD Model

Description

The Bridgelux V13 Array COB LED is a high-performance, square-shaped chip-on-board LED that is ideal for LED lighting applications.

  • Color: White or Warm
  • Viewing Angle: 120°
  • Current - Max: 1.05A
  • Voltage - Forward (Vf) (Typ): 32.3V
  • CCT (K): 3000K
  • CRI (Color Rendering Index): 80
  • Lumens/Watt @ Current - Test: 132 lm/W
  • Light Emitting Surface (LES): 13.40mm
  • Length: 15.80mm
  • Width: 15.80mm
  • Height: 1.70mm
  • Package: Tray
  • Standard Package: 840
  • ECCN: EAR99
  • REACH: Not Affected
