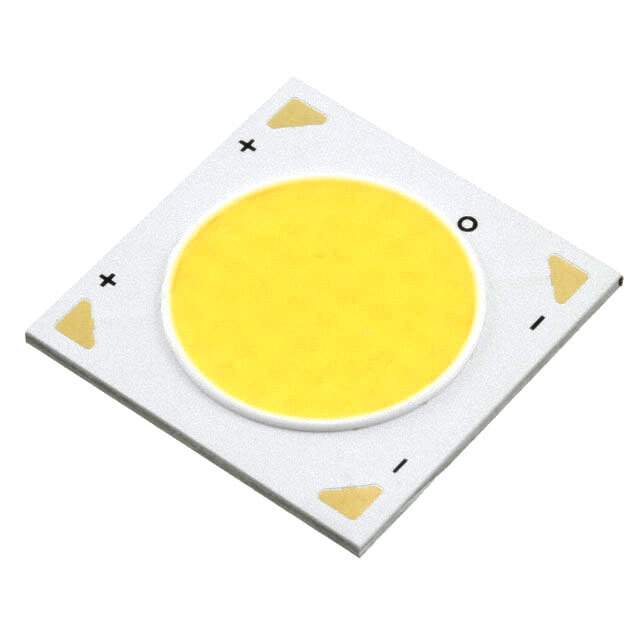

BXRE-30E3001-D-03 Real Image
Same model may have multiple batches, images only for reference.

BXRE-30E3001-D-03

Part No BXRE-30E3001-D-03
Manufacturer Bridgelux
Catalog LED Lighting - COBs, Engines, Modules
Description LED ARRAY 3000LM WARM WHITE  /  LED Lighting COBs Engines Modules Chip On Board (COB) series White, Warm Square
Datasheet
BXRE-30E3001-D-03 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Bridgelux
Series V15 Array
Package Tray
Product Status Obsolete
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3000K 3-Step MacAdam Ellipse
Configuration Square
Luminous Flux @ Current/Temperature 2899lm (Typ)
Current - Test 700mA
Temperature - Test 25°C
Voltage - Forward (Vf) (Typ) 36.4V
Lumens/Watt @ Current - Test 113 lm/W
Current - Max 1.4A
CRI (Color Rendering Index) 80
Viewing Angle 120°
Dimension 21.00mm L x 21.00mm W
Height 1.70mm
Light Emitting Surface (LES) 15.20mm Dia
Lens Type Flat
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 976-1230
Standard Package 600
Win Source Part Number 1217781-BXRE-30E3001-D-03
Ultra Librarian 3D Model Ultra Librarian BXRE-30E3001-D-03 CAD Model

Description

The BXRE-30E3001-D-03 LED from Bridgelux is an obsolete component that belongs to the LED Lighting - COBs, Engines, Modules, Strips category.

  • Type: Chip on Board (COB)
  • Light Color: White and Warm
  • Luminous Flux: 2899lm (Typ)
  • Viewing Angle: 120°
  • Voltage Forward (Vf) (Typ): 36.4V
  • Current Rating: 1.4A
