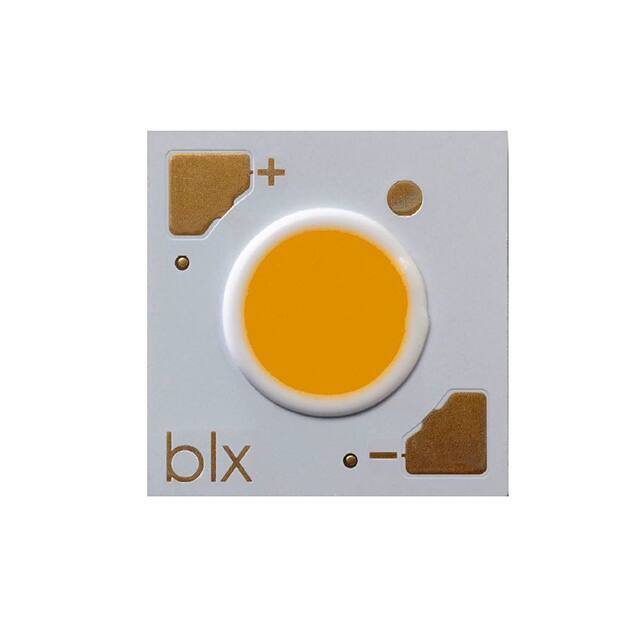

Same model may have multiple batches, images only for reference.
BXRH-30E1000-C-23
Same model may have multiple batches, images only for reference.

BXRH-30E1000-C-23

Part No BXRH-30E1000-C-23
Manufacturer Bridgelux
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB H6 ARRAY WHT SQU 3000K
Datasheet
BXRH-30E1000-C-23 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - COBs, Engines, Modules, Strips
Mfr Bridgelux
Series H6 Array
Package Tube
Product Status Obsolete
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3000K 3-Step MacAdam Ellipse
Configuration Square
Luminous Flux @ Current/Temperature 1373lm (Typ)
Current - Test 750mA
Temperature - Test 25°C
Voltage - Forward (Vf) (Typ) 18.3V
Lumens/Watt @ Current - Test 100 lm/W
Current - Max 1.05A
CRI (Color Rendering Index) 80
Viewing Angle 112°
Size / Dimension 13.35mm L x 13.35mm W
Height 1.70mm
Light Emitting Surface (LES) 6.60mm Dia
Lens Type Flat
Base Product Number BXRH-30
Standard Package 700 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 865066-BXRH-30E1000-C-23
Ultra Librarian 3D Model Ultra Librarian BXRH-30E1000-C-23 CAD Model

Description

The Bridgelux H6 Array is a chip-on-board (COB) module for optoelectronics applications.

  • Color: White and warm
  • Viewing Angle: 112°
  • Size: 13.35mm x 13.35mm
  • Height: 1.70mm
  • Current: 1.05A
  • Forward Voltage: 18.3V
  • Temperature: 25°C
  • CCT: 3000K (3-step MacAdam ellipse)
  • Luminous Flux: 1373lm @ specified current and temperature
