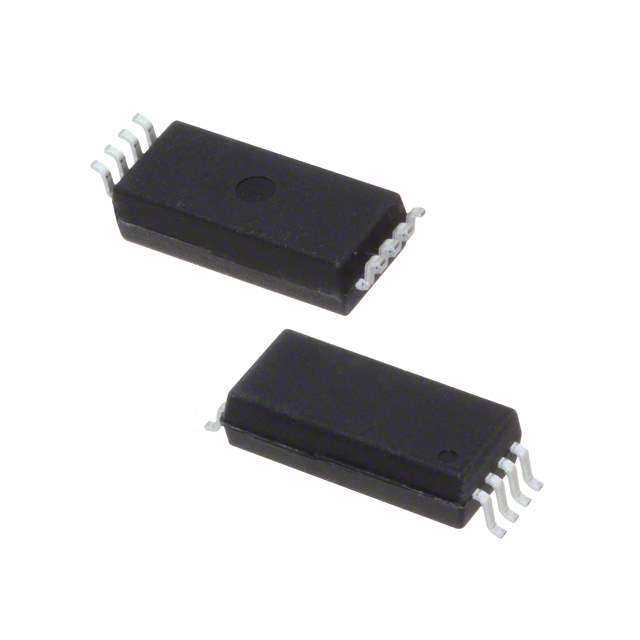

ACNT-H61L-000E Real Image ACNT-H61L-000E Real Image
Same model may have multiple batches, images only for reference.
ACNT-H61L-000E Real Image ACNT-H61L-000E Real Image
ACNT-H61L-000E Real Image ACNT-H61L-000E Real Image
Same model may have multiple batches, images only for reference.

ACNT-H61L-000E

Part No ACNT-H61L-000E
Manufacturer Broadcom Limited
Catalog Optoisolators - Logic Output
Description OPTOISO 7.5KV PUSH PULL 8SO / Logic Output Optoisolator 10MBd Push-Pull, Totem Pole 7500Vrms 1 Channel 20kV/µs CMTI 8-SO Stretched
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Optoisolators - Logic Output Optoisolators
Mfr Broadcom Limited
Package Tube
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Voltage - Isolation 7500Vrms
Common Mode Transient Immunity (Min) 20kV/µs
Input Type DC
Output Type Push-Pull, Totem Pole
Data Rate 10MBd
Voltage - Supply 2.7V ~ 5.5V
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Surface Mount
Package / Case 8-SOIC (0.535", 13.60mm Width)
Supplier Device Package 8-SO Stretched
Base Product Number ACNT-H61
Standard Package 80
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 1350907-ACNT-H61L-000E
Ultra Librarian 3D Model Ultra Librarian ACNT-H61L-000E CAD Model

Description

The ACNT-H61L-000E series is a logic output optoisolator component designed for use in various applications.

  • Packaging: Tube
  • Operating Temperature Range: -40°C to 105°C
  • Output Type: Push-Pull, Totem Pole
  • Data Rate: 10MBd
  • Input Type: DC
  • Number of Channels: 1
  • Voltage Isolation: 7500Vrms
  • Inputs - Side 1/Side 2: 1/0
  • Common Mode Transient Immunity (Min): 20kV/μs
  • Voltage Supply: 2.7V to 5.5V
  • Mounting Type: Surface Mount
  • Package / Case: 8-SOIC (0.535", 13.60mm Width)
  • Supplier Device Package: 8-SO Stretched
  • Base Product Number: ACNT-H61
  • Series: ACNT-H61L-000E
  • Manufacturer: Broadcom Limited
