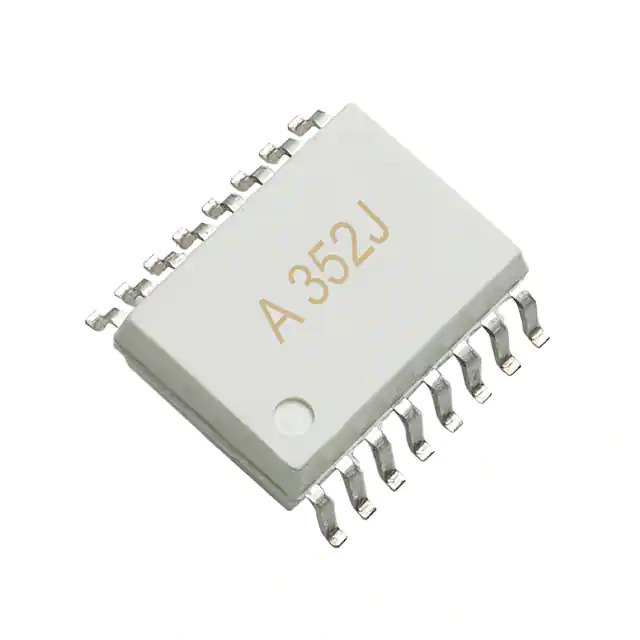

ACPL-352J-500E Broadcom Limited
Same model may have multiple batches, images only for reference.

ACPL-352J-500E

Part No ACPL-352J-500E
Manufacturer Broadcom Limited
Catalog Isolators - Gate Drivers
Description OPTOISO 5KV 1CH GATE DRVR 16SOIC / 5A Gate Driver Optical Coupling 5000Vrms 1 Channel 16-SOIC
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Isolators - Gate Drivers
Mfr Broadcom Limited
Series -
Package Tape & Reel
Product Status Active
Technology Optical Coupling
Number of Channels 1
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Min) 100kV/µs
Propagation Delay tpLH / tpHL (Max) 150ns, 150ns
Pulse Width Distortion (Max) 50ns
Rise / Fall Time (Typ) 37ns, 30ns
Current - Output High, Low 4.5A, 4.5A
Current - Peak Output 5A
Voltage - Forward (Vf) (Typ) 1.55V
Current - DC Forward (If) (Max) 25 mA
Voltage - Output Supply 15V ~ 30V
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Surface Mount
Package / Case 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package 16-SOIC
Approval Agency CSA, IEC/EN/DIN, UR
Base Product Number ACPL-352
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 1353956-ACPL-352J-500E
Ultra Librarian 3D Model Ultra Librarian ACPL-352J-500E CAD Model

Description

The ACPL-352J-500E is an optical coupling isolator manufactured by Broadcom Limited.

  • Application: Gate Driver
  • Temperature Range: -40°C to 105°C
  • Voltage Isolation: 5000Vrms
  • Channels: 1
  • Output Current (High/Low): 4.5A
  • Mounting Type: Surface Mount
  • Package: 16-SOIC
  • Voltage Forward (Vf): 1.55V
  • Rise/Fall Time: 37ns/30ns
  • Common Mode Transient Immunity: 100kV/μs
  • REACH: Unaffected
  • ECCN: EAR99
