Same model may have multiple batches, images only for reference.

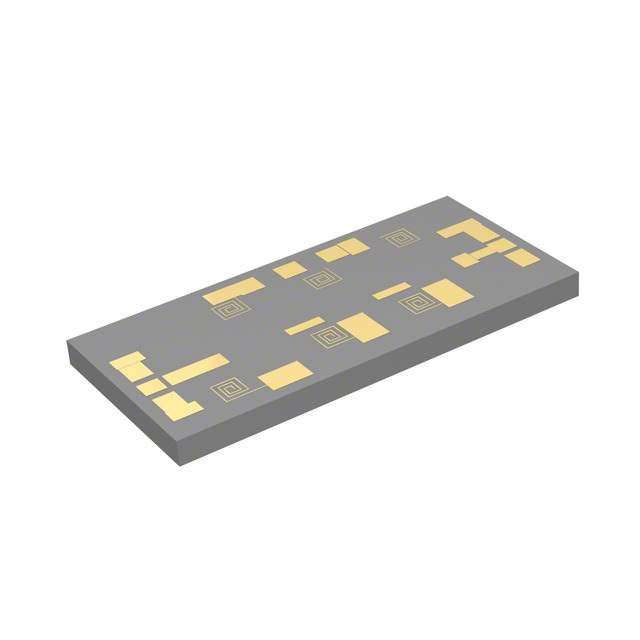

AMMC-6220-W50 Real Image
Same model may have multiple batches, images only for reference.

AMMC-6220-W50

Part No AMMC-6220-W50
Manufacturer Broadcom Limited
Catalog RF Amplifiers
Description IC RF AMP 6GHZ-20GHZ MODULE / 6 - 20 GHz Low Noise Amplifier
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Broadcom Limited
Packaging Tray
Part Status Obsolete (End Of Life)
Frequency 6GHz ~ 20GHz
P1dB 9dBm
Gain 23dB
Noise Figure 2dB
Supply Voltage (V) 3V
Current - Supply 55mA
Test Frequency 16GHz ~ 20GHz
Manufacturer Package Module
Supplier Device Package Module
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 811842-AMMC-6220-W50
Ultra Librarian 3D Model Ultra Librarian AMMC-6220-W50 CAD Model

Description

The Broadcom Limited 811842-AMMC-6220-W50 is an obsolete (end of life) module with a limited supply and demand status.

  • Test Frequency: 16GHz to 20GHz
  • Frequency Range: 6GHz to 20GHz
  • Gain: 23dB
  • Noise Figure: 2dB
  • Current-Supply: 55mA
  • P1dB: 9dBm
  • Manufacturer Package: Module
  • Pack Quantity: 50
  • Supply Voltage: 3V
  • MSL Level: 1 (unlimited)
