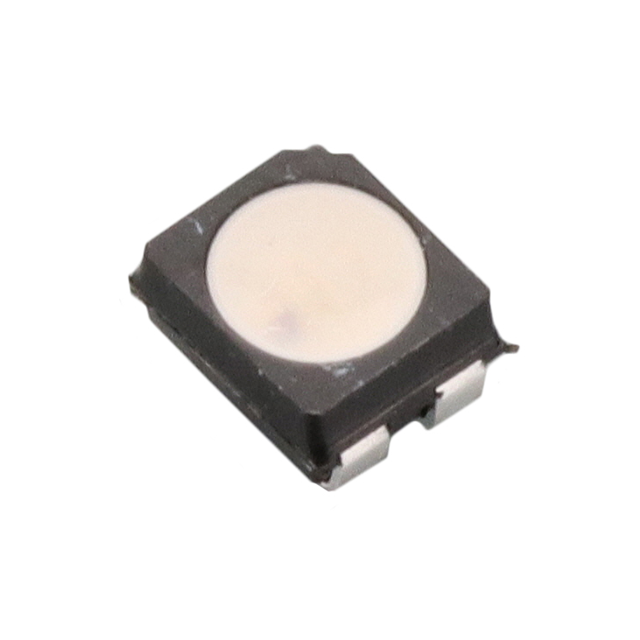

ASMB-BTE1-0B332 Broadcom Limited
Same model may have multiple batches, images only for reference.

ASMB-BTE1-0B332

Part No ASMB-BTE1-0B332
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED RGB DIFFUSED 4PLCC SMD
Datasheet
ASMB-BTE1-0B332 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Broadcom Limited
Part Status Obsolete
Color Red, Green, Blue (RGB)
Configuration Common Anode
Lens Color White
Lens Transparency Diffused
Millicandela Rating 630mcd Red, 1500mcd Green, 350mcd Blue
Lens Style Round with Flat Top
Lens Size 2.40mm Dia
Current - Test 20mA Red, 20mA Green, 20mA Blue
Ultra Librarian 3D Model Ultra Librarian ASMB-BTE1-0B332 CAD Model

Description

This family of SMT LEDs are in PLCC-4 package, with common anode pin. The full black plastic housing with white inner reflector provides good contrast without compromising brightness. A wide viewing angle of 110° together with the built-in reflector drives up the intensity of light output making these LEDs suitable for use in interior electronics signs.

These LEDs are compatible with reflow soldering process. For easy pick & place, the LEDs are shipped in tape and reel. Every reel is shipped from a single intensity and color bin except red color for better uniformity
