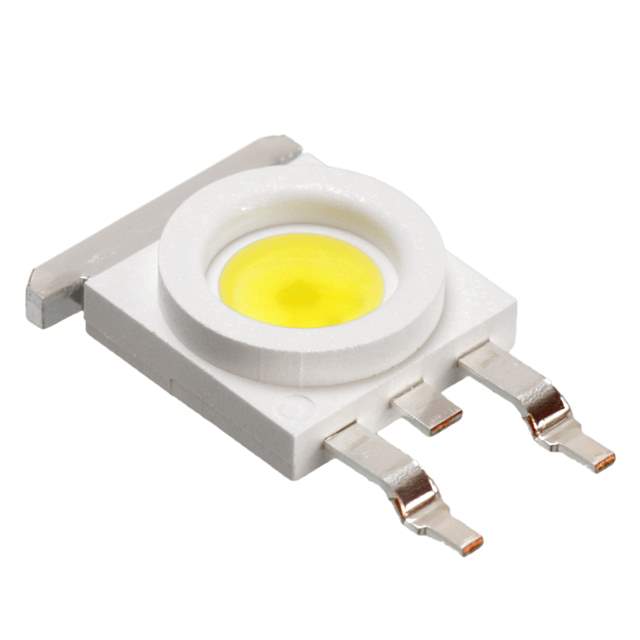

ASMT-MY22-NMN00 Real Image
Same model may have multiple batches, images only for reference.

ASMT-MY22-NMN00

Part No ASMT-MY22-NMN00
Manufacturer Broadcom Limited
Catalog LED Lighting - White
Description LED MOONSTONE WM WHT 3300K TO252  /  LED Lighting series White, Warm 3300K (2600K ~ 4000K) 3.2V 350mA 120° TO-252-3, DPak (2 Leads + Tab), SC-63
Datasheet
ASMT-MY22-NMN00 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr Broadcom Limited
Series Moonstone™
Package Tube
Product Status Obsolete
Color White, Warm
CCT (K) 3300K (2600K ~ 4000K)
Flux @ 85°C, Current - Test 102lm
Flux @ 25°C, Current - Test 128lm (95lm ~ 161lm)
Current - Test 350mA
Voltage - Forward (Vf) (Typ) 3.2V
Lumens/Watt @ Current - Test 114 lm/W
Current - Max 700mA
Viewing Angle 120°
Mounting SMD (SMT)
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
Dimension 0.335" L x 0.335" W (8.50mm x 8.50mm)
Height - Seated (Max) 0.134" (3.40mm)
Thermal Resistance of Package 10°C/W
Base Product Number ASMT-MY22
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 516-1975-5
Standard Package 500
Win Source Part Number 1018635-ASMT-MY22-NMN00
Ultra Librarian 3D Model Ultra Librarian ASMT-MY22-NMN00 CAD Model

Description

The ASMT-MY22-NMN00 is a white LED lighting component from Broadcom Limited.

  • Series: Moonstone™
  • Package: Tube
  • Standard Package: 500
  • Maximum Height: 0.134 inches
  • Maximum Current: 700mA
  • Viewing Angle: 120°
  • Forward Voltage: 3.2V
  • CCT: 3300K
  • Flux: 102lm @ 85°C, current-test @ 350mA
  • Thermal Resistance: 10°C/W
  • Package/Case: TO-252-3, DPak (2 Leads + Tab), SC-63
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS Code: 8541.41.0000
